LDC1614QRGHTQ1 - Texas Instruments

Description: Inductance to Digital Converter Automotive 16-Pin WQFN EP T/R

Download LDC1614QRGHTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

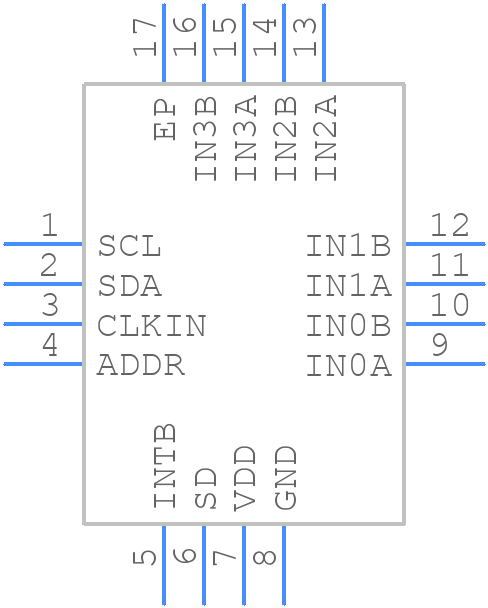

LDC1614QRGHTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LDC1614QRGHTQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGH0016A_2021
click to zoom
3D Models
LDC1614QRGHTQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RGH0016A_2021
click to zoom

LDC1614QRGHTQ1 Details

  • Manufacturer Part Number:

    LDC1614QRGHTQ1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-05-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    Number of input channels : 4

  • Converter Type:

    INDUCTANCE TO DIGITAL CONVERTER

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    28

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LDC1614QRGHTQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLAU522, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • Calibration involves adjusting the device's internal registers to compensate for variations in the sensor and PCB. Texas Instruments provides a calibration procedure in the datasheet, which involves measuring the sensor's output with a known inductor and adjusting the registers accordingly.
  • The LDC1614QRGHTQ1 can operate up to 100 kHz, but the maximum frequency of operation depends on the specific application and the inductor being measured. It's recommended to consult the datasheet and application notes for more information on frequency limitations.
  • Yes, the LDC1614QRGHTQ1 can measure inductors with high Q factors, but it may require additional circuitry and calibration. Texas Instruments provides guidance on measuring high-Q inductors in the application note SLAU523.
  • The LDC1614QRGHTQ1 has a digital interface that can be connected to a microcontroller using a serial peripheral interface (SPI) or an inter-integrated circuit (I2C) bus. Texas Instruments provides example code and interface guidelines in the datasheet and application notes.
