LEA-M8F-0 - u-blox

Description: GNSS / GPS Modules u-blox M8 Time & Frequency Reference module, Flash, VCTCXO, dual SAW, LNA

Download LEA-M8F-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

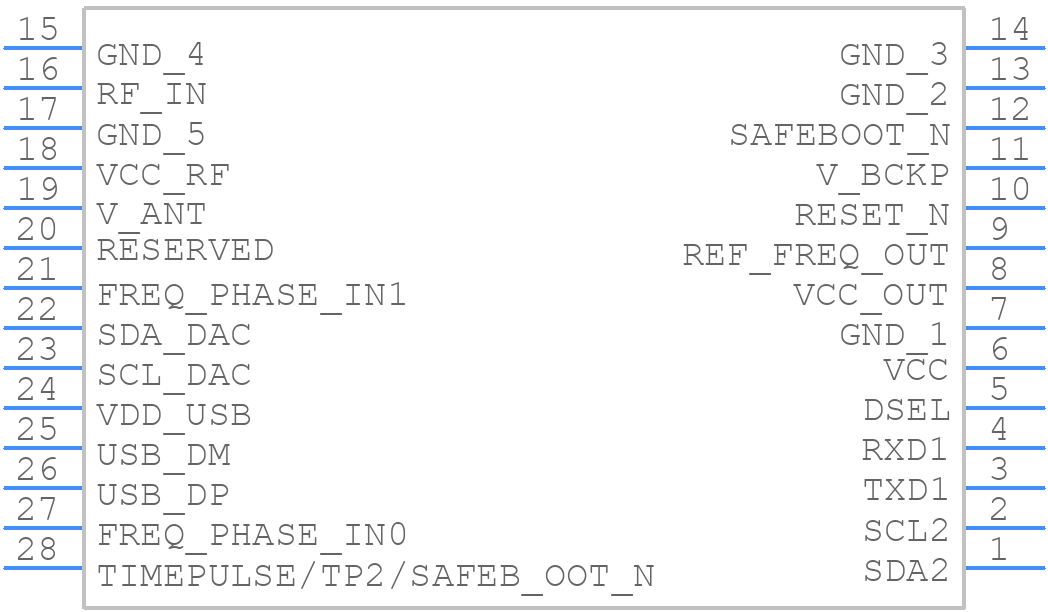

LEA-M8F-0 - u-blox - PCB symbol
click to zoom
PCB Footprints

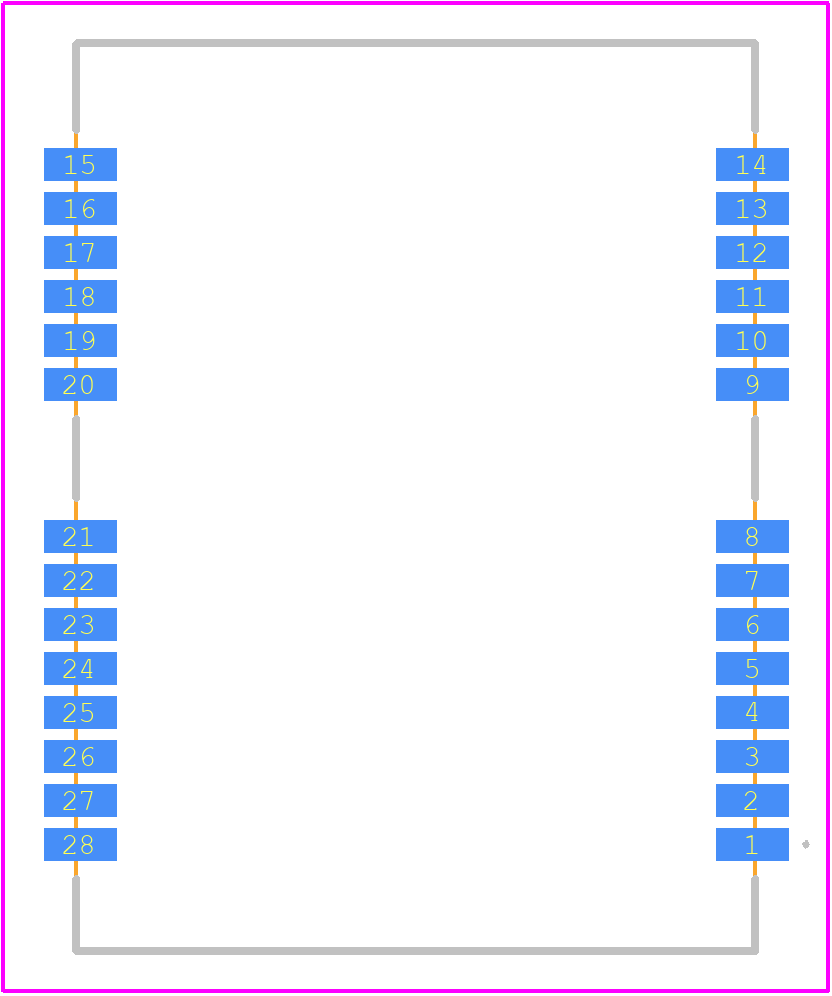

LEA-M8F-0 - u-blox PCB footprint - Other - Other - LEA-M8F-0-3
click to zoom
3D Models
LEA-M8F-0 - u-blox - 3D model - Other - LEA-M8F-0-3
click to zoom

LEA-M8F-0 Details

  • Manufacturer Part Number:

    LEA-M8F-0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • Telecom IC Type:

    TELECOM CIRCUIT

LEA-M8F-0 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the module, then wait for at least 100 ms before sending any commands or data. This allows the module to complete its internal initialization.
  • The LEA-M8F-0 has an internal antenna switch that can be configured using the $PUBX,40 command. The antenna type and gain can be set using the $PUBX,41 command. Consult the u-blox protocol specification for more information.
  • The maximum update rate of the LEA-M8F-0 is 10 Hz (10 times per second). However, this may vary depending on the specific configuration and signal conditions.
  • RTK mode can be enabled or disabled using the $PUBX,34 command. Consult the u-blox protocol specification for more information on the specific command syntax and options.
  • The typical current consumption of the LEA-M8F-0 is around 70-80 mA during continuous operation. However, this may vary depending on the specific configuration, signal conditions, and operating mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LEA-M8F-0 Overview

Use the download button to access the LEA-M8F-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LEA-M, or try a keyword search, such as Other Telecom ICs

About u-blox

u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
