- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LF356H
- Part Number LF356H
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - LMC(O-MBCY-W8)
- Released Date Jun 18, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LF356H Details
-
Manufacturer Part Number:
LF356H
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
TO-5
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Amplifier Type:
OPERATIONAL AMPLIFIER
LF356H Frequently Asked Questions (FAQs)
-
The maximum power dissipation of the LF356H is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability in a unity-gain buffer configuration, add a 10-22pF capacitor in parallel with a 1kΩ resistor between the output and the inverting input. This helps to compensate for the op-amp's internal capacitance and prevents oscillations.
-
For optimal performance, use a star-grounding technique, where the grounds of the power supplies, analog circuits, and digital circuits are connected at a single point. Keep the LF356H's input and output traces short and away from noise sources, and use a ground plane to reduce electromagnetic interference (EMI).
-
The LF356H is rated for operation up to 125°C, but its performance may degrade at high temperatures. For reliable operation, ensure that the junction temperature (TJ) does not exceed 150°C. Use thermal management techniques, such as heat sinks or thermal interfaces, to keep the device within its operating temperature range.
-
To minimize noise and EMI, use shielded cables, keep the LF356H away from noise sources, and use a low-pass filter or a ferrite bead to filter out high-frequency noise. Additionally, use a decoupling capacitor (e.g., 10uF) between the power supply pins and the ground pin to reduce power supply noise.
Trust Checks
Expert Contribution
System Verified
Community Approved
LF356H Overview

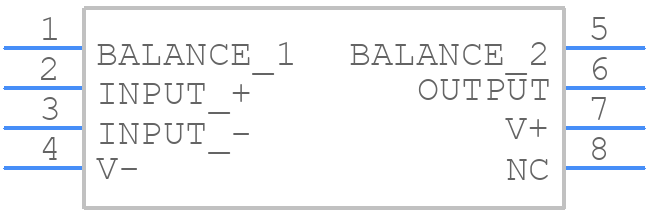

Use the download button to access the LF356H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LF356,
or try a keyword search, such as Operational Amplifiers
