- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LF444CMX
- Part Number LF444CMX
- Manufacturer Texas Instruments
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D (-R-PDSO-G14)
- Released Date Dec 17, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LF444CMX Details
-
Manufacturer Part Number:
LF444CMX
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
PLASTIC, SOP-14
-
Pin Count:
14
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Amplifier Type:
OPERATIONAL AMPLIFIER
LF444CMX Frequently Asked Questions (FAQs)
-
The maximum power dissipation of the LF444CMX is dependent on the package type and ambient temperature. For the PDIP package, the maximum power dissipation is 670mW at 25°C. For the SOIC package, it is 450mW at 25°C. It is essential to ensure that the device does not exceed these power dissipation limits to prevent overheating and potential damage.
-
To ensure stability when using the LF444CMX in a unity-gain configuration, it is recommended to add a capacitor (typically 10-100pF) between the output and the inverting input. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations. Additionally, ensuring that the layout is well-designed and that the input and output pins are properly decoupled can also help to maintain stability.
-
The recommended input impedance for the LF444CMX is greater than 1kΩ. This is because the input bias current of the op-amp is relatively high, and a low input impedance can cause the input voltage to be affected by the bias current. Using a high input impedance helps to minimize this effect and ensure accurate operation.
-
While the LF444CMX can be used as a comparator, it is not the most suitable device for this application. The LF444CMX is an op-amp designed for linear applications, and its output stage is not optimized for high-speed switching. Texas Instruments recommends using a dedicated comparator device, such as the LM339 or LM2901, for comparator applications.
-
The LF444CMX has internal ESD protection diodes, but it is still recommended to take precautions when handling the device to prevent electrostatic discharge (ESD). This includes using an ESD wrist strap or mat, storing the devices in anti-static packaging, and avoiding touching the pins or leads of the device. Additionally, it is recommended to add external ESD protection devices, such as TVS diodes or ESD protection arrays, to the circuit to provide additional protection.
Trust Checks
Community Provided
System Verified
Community Approved
LF444CMX Overview

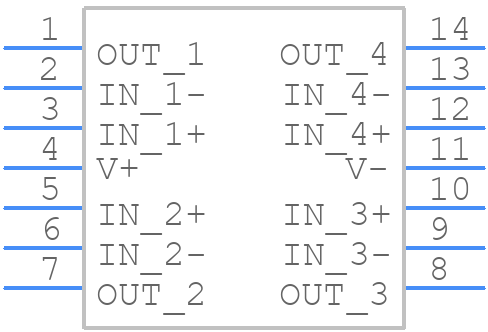

Use the download button to access the LF444CMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LF444,
or try a keyword search, such as Operational Amplifiers
