LFSPXO083319RL3K - IQD

Description: 125 MHz XO (Standard) LVDS Oscillator 3.3V Standby (Power Down) 6-SMD, No Lead ,-40.00 to 105.00°C, 50.000mA

Download LFSPXO083319RL3K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

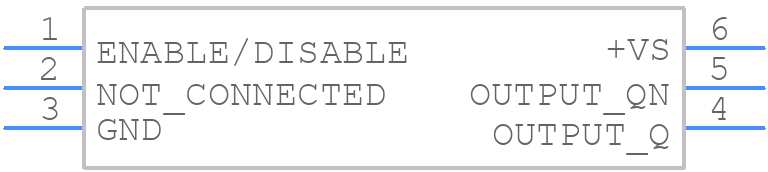

Symbol
LFSPXO083319RL3K - IQD - PCB symbol
click to zoom
PCB Footprints
LFSPXO083319RL3K - IQD PCB footprint - Other - Other - LFSPXO083319RL3K-1
click to zoom

LFSPXO083319RL3K Details

  • Manufacturer Part Number:

    LFSPXO083319RL3K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    IQD Frequency Products

  • YTEOL:

    0

  • Additional Feature:

    STANDBY; ENABLE/DISABLE FUNCTION

  • Fall Time-Max:

    0.5 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    50%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    125 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Package Body Material:

    CERAMIC/METAL

  • Package Equivalence Code:

    LCC6,.1X.12,59/47

  • Physical Dimension:

    3.2mm x 2.5mm x 1.1mm

  • Rise Time-Max:

    0.5 ns

  • Screening Level:

    MIL-STD-883F

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    45/55 %

LFSPXO083319RL3K Frequently Asked Questions (FAQs)

  • The recommended termination impedance for the LFSPXO083319RL3K is 15pF to 30pF. This ensures optimal signal integrity and minimizes signal reflections.
  • The LFSPXO083319RL3K is rated for operation from -40°C to +85°C. However, it's recommended to derate the frequency stability and output amplitude at extreme temperatures. Consult with IQD Frequency Products for specific guidance on using this oscillator in harsh environments.
  • The typical start-up time for the LFSPXO083319RL3K is around 2-5ms. This may vary depending on the specific application and power supply conditions.
  • The LFSPXO083319RL3K is designed to withstand moderate vibration levels. However, it's recommended to consult with IQD Frequency Products for specific guidance on using this oscillator in high-vibration environments, as additional testing and validation may be required.
  • The LFSPXO083319RL3K is available with custom output frequencies. Contact IQD Frequency Products to discuss your specific frequency requirements and lead times.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LFSPXO083319RL3K Overview

Use the download button to access the LFSPXO083319RL3K schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LFSPX, or try a keyword search, such as XO
