LGG2D561MELZ30 - Nichicon

Description: 560 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C

Download LGG2D561MELZ30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGG2D561MELZ30 - Nichicon - PCB symbol
click to zoom
PCB Footprints

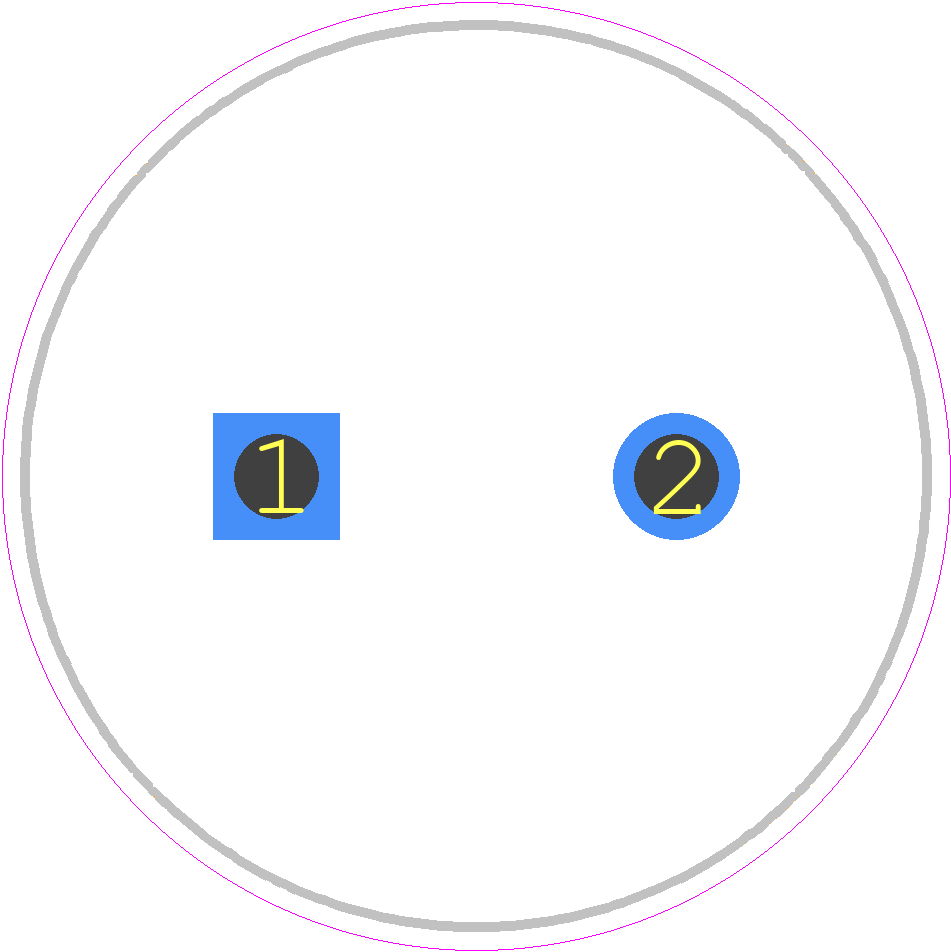

LGG2D561MELZ30 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22 x 30mm
click to zoom
3D Models
LGG2D561MELZ30 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 22 x 30mm
click to zoom

LGG2D561MELZ30 Details

  • Manufacturer Part Number:

    LGG2D561MELZ30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    560 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    200 V

  • Ripple Current:

    1480 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGG2D561MELZ30 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for LGG2D561MELZ30 is to place the capacitor as close as possible to the power source, with the shortest possible leads to minimize inductance and ensure optimal performance. A ground plane underneath the capacitor is also recommended to reduce noise and electromagnetic interference.
  • LGG2D561MELZ30 is designed to handle high-frequency noise effectively due to its low equivalent series resistance (ESR) and high resonance frequency. The capacitor's internal construction and materials are optimized to minimize impedance at high frequencies, making it suitable for noise filtering and decoupling applications.
  • LGG2D561MELZ30 has a rated operating temperature range of -55°C to 125°C, making it suitable for high-temperature applications. However, it's essential to consider the capacitor's derating characteristics and ensure that the operating temperature does not exceed the maximum rated temperature to maintain reliability and performance.
  • LGG2D561MELZ30 is designed to withstand moderate vibration levels, but it's essential to consider the specific vibration requirements of the application. Nichicon recommends following the IEC 60068-2-6 standard for vibration testing to ensure the capacitor's reliability in high-vibration environments.
  • LGG2D561MELZ30 is a high-reliability capacitor with a long lifespan and low failure rate. Nichicon's manufacturing process and quality control measures ensure that the capacitor meets or exceeds industry standards for reliability, making it suitable for critical applications where downtime is not acceptable.
