LGG2E102MELA50 - Nichicon

Description: 1000 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C ,-40°C ~ 105°C

Download LGG2E102MELA50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGG2E102MELA50 - Nichicon - PCB symbol
click to zoom
PCB Footprints

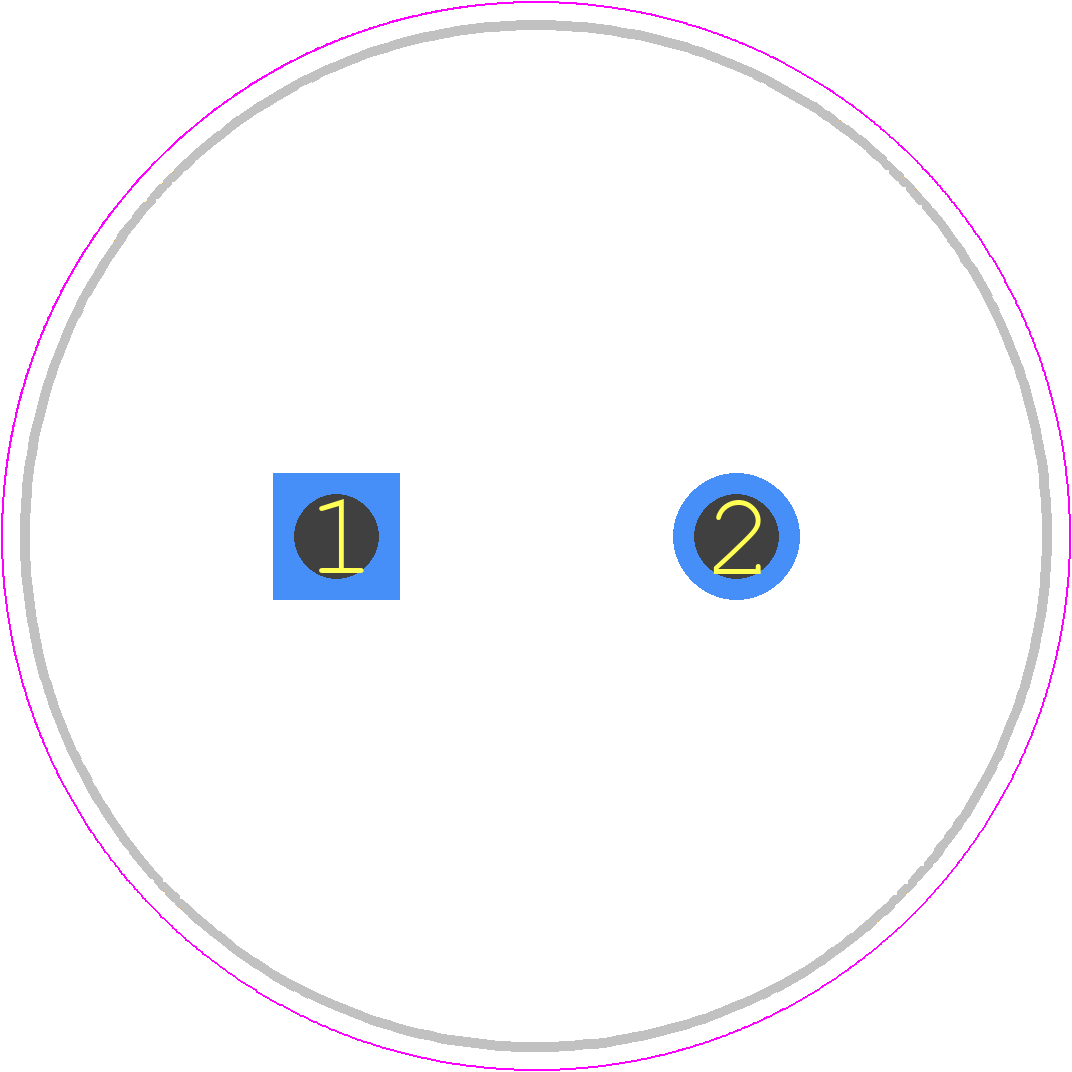

LGG2E102MELA50 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25mm x 50mm_2026-1.15
click to zoom
3D Models
LGG2E102MELA50 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25mm x 50mm_2026-1.15
click to zoom

LGG2E102MELA50 Details

  • Manufacturer Part Number:

    LGG2E102MELA50

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.5 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    2200 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGG2E102MELA50 Frequently Asked Questions (FAQs)

  • The recommended PCB land pattern for LGG2E102MELA50 can be found in Nichicon's application note or by contacting their technical support. The land pattern should ensure good thermal dissipation and mechanical stability.
  • While LGG2E102MELA50 is designed to be robust, it's essential to evaluate its performance in a high-vibration environment. Nichicon recommends consulting their technical support or performing vibration testing to ensure the capacitor meets the specific application requirements.
  • The ESR of LGG2E102MELA50 is specified in the datasheet. To handle ESR in your design, consider using impedance analysis tools or simulation software to ensure the capacitor's ESR does not affect the overall circuit performance.
  • Yes, LGG2E102MELA50 is compatible with lead-free soldering processes. Nichicon ensures that their products comply with RoHS and REACH regulations, making them suitable for lead-free assembly.
  • To maintain the capacitor's performance and shelf life, store LGG2E102MELA50 in a cool, dry place, away from direct sunlight and moisture. Follow Nichicon's recommended storage conditions, typically 5°C to 30°C and 60% RH or less.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGG2E102MELA50 Overview

Use the download button to access the LGG2E102MELA50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGG2E, or try a keyword search, such as Aluminum Electrolytic Capacitors
