The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds to 5 seconds. However, it's always best to consult the manufacturer's soldering guidelines and follow industry-standard soldering practices.
Yes, the LGG2G181MELA25 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE) above the allowed limits.
The ESR of the LGG2G181MELA25 capacitor is not explicitly stated in the datasheet, but it can be estimated to be around 0.02 ohms to 0.05 ohms based on the capacitor's size and material. However, it's recommended to consult the manufacturer or a reliable source for the exact ESR value.
The LGG2G181MELA25 capacitor is designed for general-purpose use and may not be suitable for high-vibration or high-shock applications. If you need a capacitor for such applications, it's recommended to consult the manufacturer or a reliable source for a capacitor that meets the specific requirements.
The MSL of the LGG2G181MELA25 capacitor is typically level 2 or 3, which means it can withstand exposure to moisture for a certain period of time before soldering. However, it's recommended to follow the manufacturer's guidelines for handling and storage to prevent moisture absorption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGG2G181MELA25 Overview

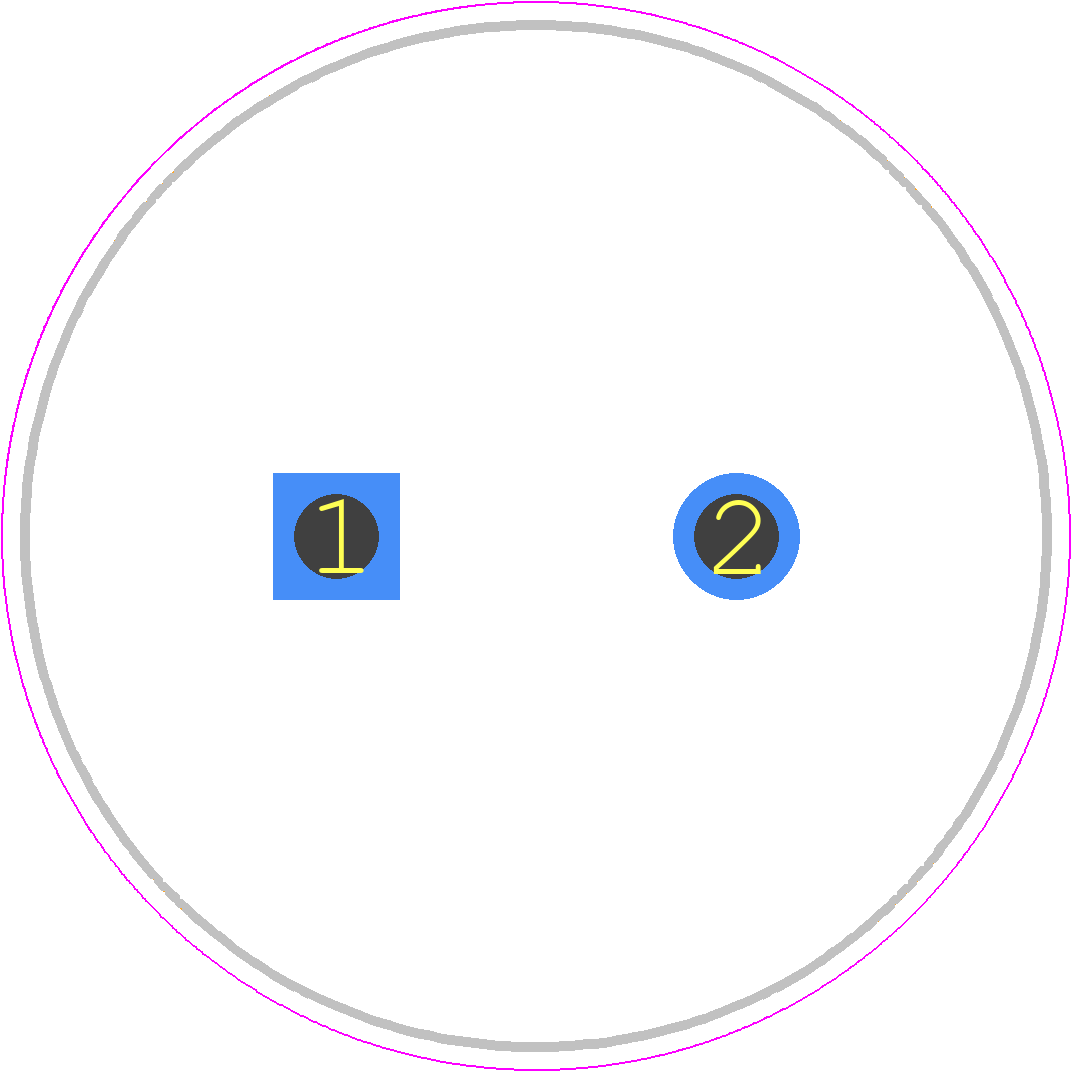

Use the download button to access the LGG2G181MELA25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGG2G,
or try a keyword search, such as Aluminum Electrolytic Capacitors
