LGG2W271MELA40 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 270uF 450 Volts 0.2

Download LGG2W271MELA40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGG2W271MELA40 - Nichicon - PCB symbol
click to zoom
PCB Footprints

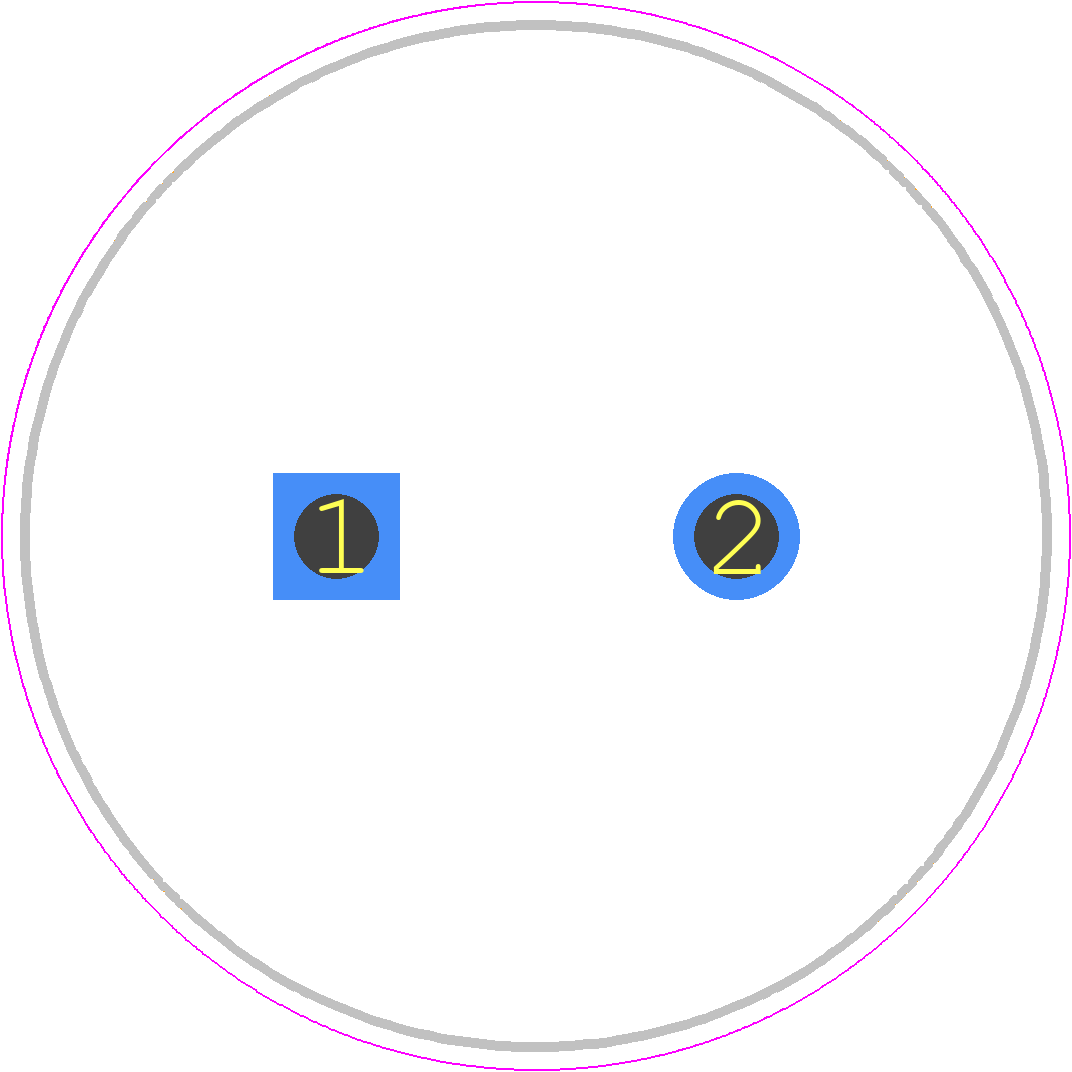

LGG2W271MELA40 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25mm x 40mm
click to zoom
3D Models
LGG2W271MELA40 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25mm x 40mm
click to zoom

LGG2W271MELA40 Details

  • Manufacturer Part Number:

    LGG2W271MELA40

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    270 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.04 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1050 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGG2W271MELA40 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for LGG2W271MELA40 is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the LGG2W271MELA40 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The ESR of the LGG2W271MELA40 is typically around 0.02 ohms, but this value can vary depending on the frequency and operating conditions.
  • The LGG2W271MELA40 is rated for operation up to 105°C, but it can be used in high-temperature applications up to 125°C with derating. However, it's recommended to consult with Nichicon Corporation for specific guidance.
  • The LGG2W271MELA40 has an MSL rating of 3, which means it can be exposed to a relative humidity of 60% at 30°C for up to 168 hours without damage.
