LGJ2W820MELA20 - Nichicon

Description: Nichicon 82μF 450 V Aluminium Electrolytic Capacitor, GJ Series 3000h 25 Dia. x 20mm

Download LGJ2W820MELA20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGJ2W820MELA20 - Nichicon - PCB symbol
click to zoom
PCB Footprints

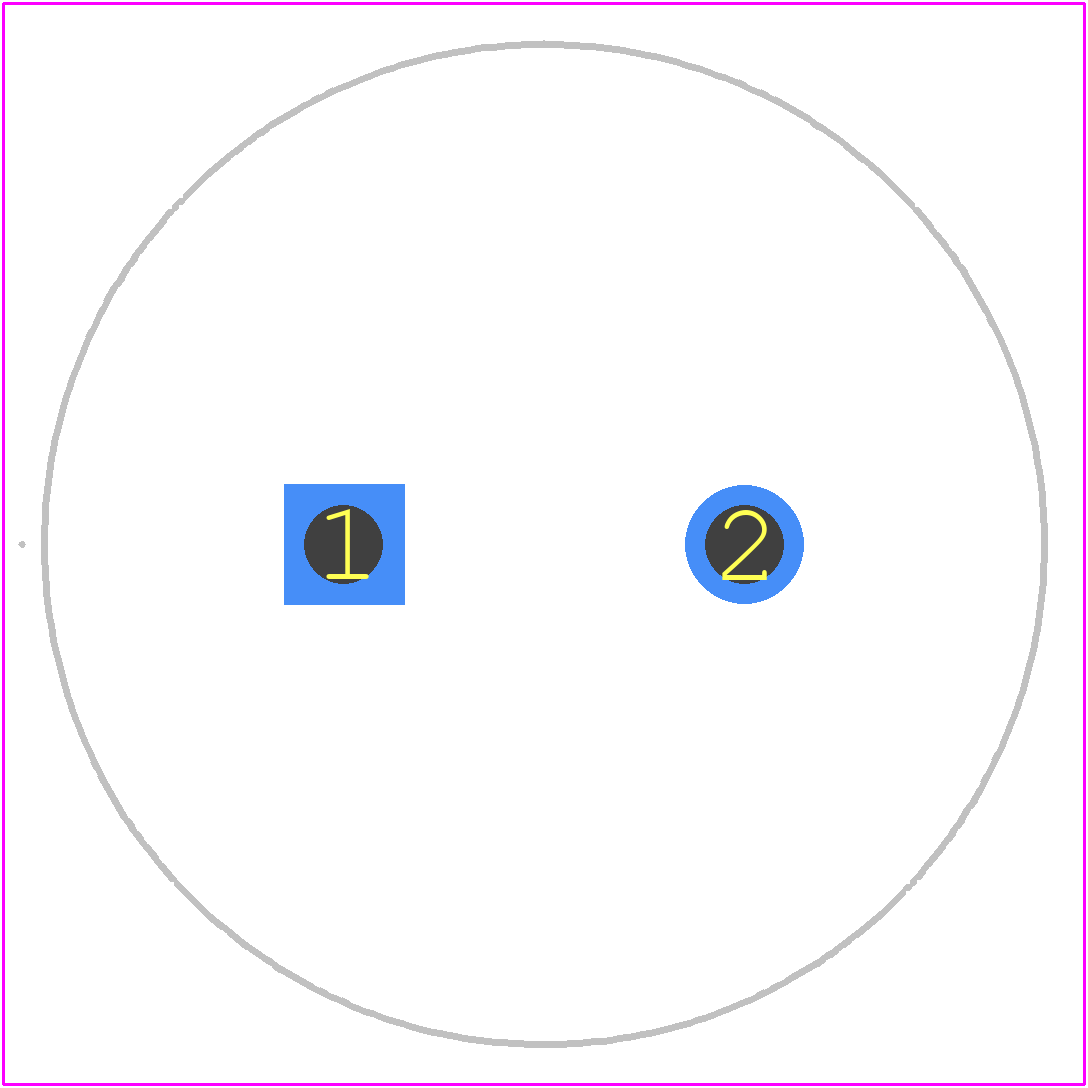

LGJ2W820MELA20 - Nichicon PCB footprint - Other - Other - 25 × 20mm
click to zoom
3D Models
LGJ2W820MELA20 - Nichicon - 3D model - Other - 25 × 20mm
click to zoom

LGJ2W820MELA20 Details

  • Manufacturer Part Number:

    LGJ2W820MELA20

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    82 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.57 mA

  • Length:

    20 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    740 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGJ2W820MELA20 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
  • Yes, the LGJ2W820MELA20 is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude. However, it's recommended to consult with Nichicon Corporation or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
  • The LGJ2W820MELA20 has a moisture sensitivity level (MSL) of 2, which means it can withstand a maximum of 30°C, 60% RH for 192 hours. It's essential to follow proper storage and handling procedures to prevent moisture absorption.
  • The ESR of the LGJ2W820MELA20 is not explicitly stated in the datasheet. However, Nichicon Corporation typically provides ESR values upon request. It's recommended to contact their technical support or a qualified engineer to obtain the ESR value for your specific application.
  • The LGJ2W820MELA20 has a maximum operating temperature of 125°C. While it can withstand high temperatures, it's essential to derate the capacitor's voltage and current ratings according to the temperature derating curve provided in the datasheet.
