LGM2W221MELZ35 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 450V 220UF 20%

Download LGM2W221MELZ35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGM2W221MELZ35 - Nichicon - PCB symbol
click to zoom
PCB Footprints

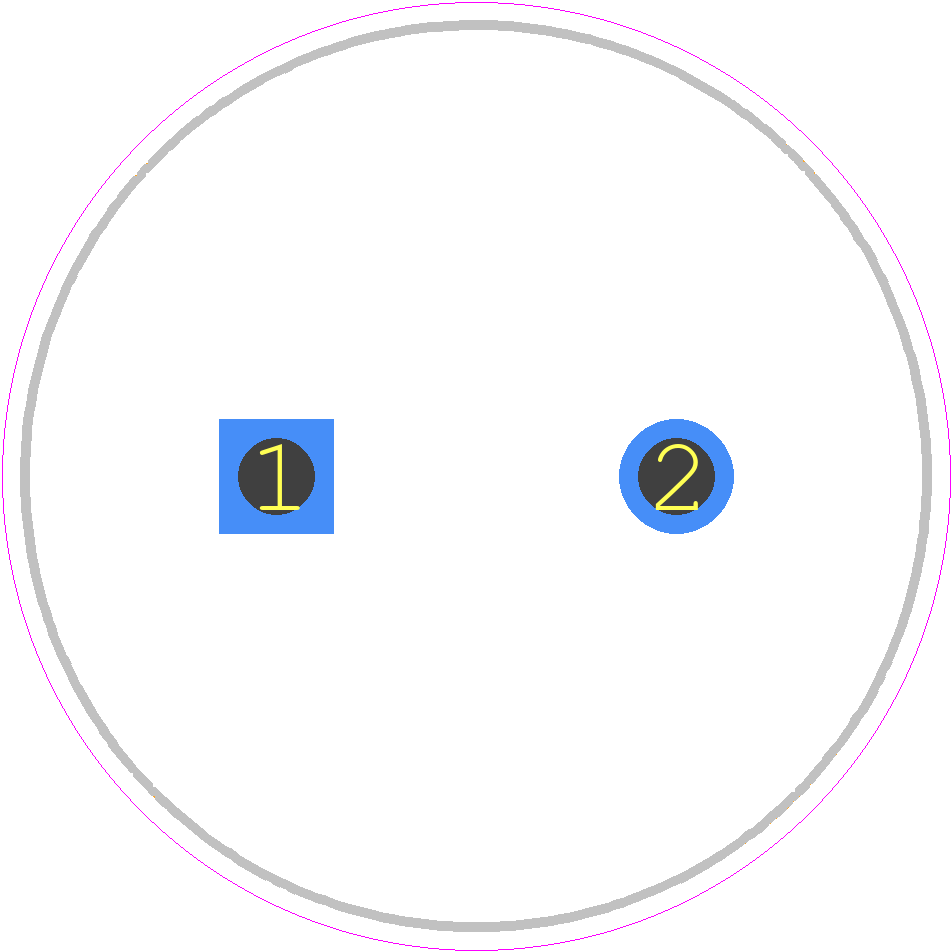

LGM2W221MELZ35 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22*35
click to zoom
3D Models
LGM2W221MELZ35 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 22*35
click to zoom

LGM2W221MELZ35 Details

  • Manufacturer Part Number:

    LGM2W221MELZ35

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Leakage Current:

    0.94 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    550 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGM2W221MELZ35 Frequently Asked Questions (FAQs)

  • The recommended land pattern for LGM2W221MELZ35 can be found in the Nichicon Corporation's recommended land pattern document or by contacting their technical support. The land pattern should ensure good solderability and thermal dissipation.
  • While LGM2W221MELZ35 is a reliable component, it's essential to evaluate its performance in a high-vibration environment. Nichicon Corporation recommends consulting their technical support or performing vibration testing to ensure the component meets the required specifications.
  • The ESR of LGM2W221MELZ35 is specified in the datasheet. To handle ESR in your design, consider using impedance analysis tools or simulation software to ensure the component's ESR does not affect the overall circuit performance.
  • Yes, LGM2W221MELZ35 is compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profile and temperature to ensure reliable solder joints.
  • The shelf life of LGM2W221MELZ35 is typically 2 years from the date of manufacture, but it's recommended to store the components in a dry, cool place, away from direct sunlight and moisture. Consult Nichicon Corporation's storage guidelines for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGM2W221MELZ35 Overview

Use the download button to access the LGM2W221MELZ35 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGM2W, or try a keyword search, such as Aluminum Electrolytic Capacitors
