LGN2C471MELZ25 - Nichicon

Description: Aluminium Electrolytic Capacitors - Snap In 160volts 470uF 105c 22x25x10L/S

Download LGN2C471MELZ25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGN2C471MELZ25 - Nichicon - PCB symbol
click to zoom
PCB Footprints

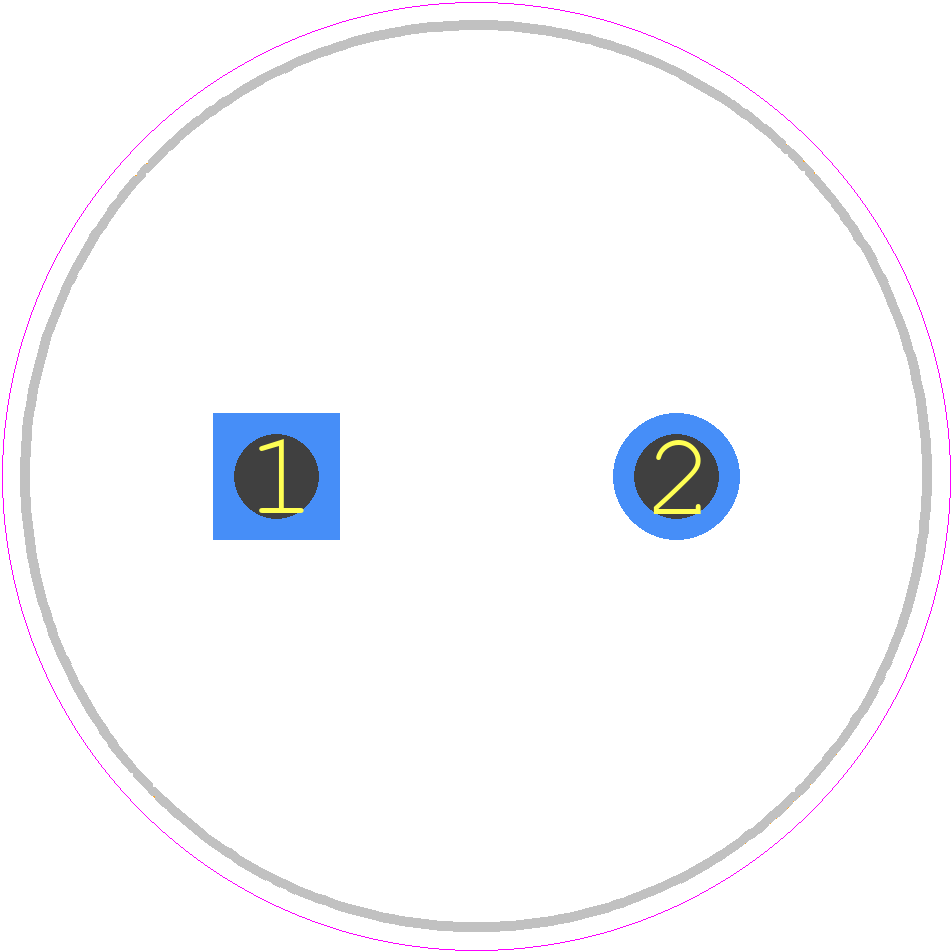

LGN2C471MELZ25 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22*25
click to zoom
3D Models
LGN2C471MELZ25 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 22*25
click to zoom

LGN2C471MELZ25 Details

  • Manufacturer Part Number:

    LGN2C471MELZ25

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.82 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    160 V

  • Ripple Current:

    1400 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGN2C471MELZ25 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the LGN2C471MELZ25 is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, and can be used in high-vibration applications.
  • Yes, the LGN2C471MELZ25 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The derating curve for the LGN2C471MELZ25 can be found in the Nichicon application notes, which provides guidance on reducing the voltage rating at high temperatures to ensure reliable operation.
  • Yes, the LGN2C471MELZ25 is designed to operate in humid environments, but it's recommended to follow the storage and handling guidelines to prevent moisture absorption.
