LGN2H121MELA35 - Nichicon

Description: Nichicon 120μF 500 V Aluminium Electrolytic Capacitor, GN Series 3000h 25 (Dia.) x 35mm

Download LGN2H121MELA35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGN2H121MELA35 - Nichicon - PCB symbol
click to zoom
PCB Footprints

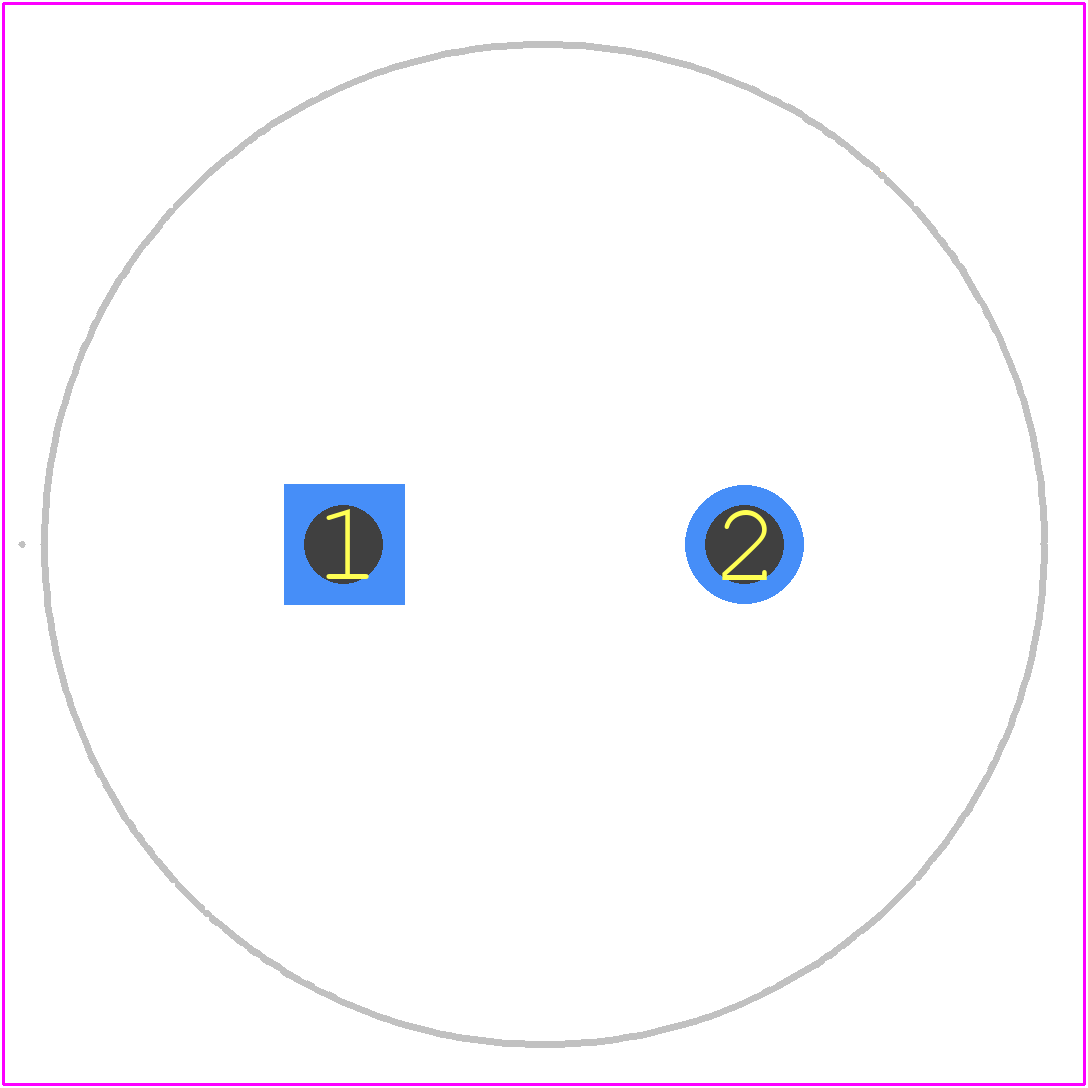

LGN2H121MELA35 - Nichicon PCB footprint - Other - Other - 25 x 35mm
click to zoom
3D Models
LGN2H121MELA35 - Nichicon - 3D model - Other - 25 x 35mm
click to zoom

LGN2H121MELA35 Details

  • Manufacturer Part Number:

    LGN2H121MELA35

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    120 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.73 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Ripple Current:

    680 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGN2H121MELA35 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGN2H121MELA35 is designed to withstand high vibrations and can be used in applications with vibration levels up to 10G.
  • The LGN2H121MELA35 is designed to have low equivalent series resistance (ESR) and equivalent series inductance (ESL), making it suitable for high-frequency noise filtering applications.
  • Yes, the LGN2H121MELA35 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, and cadmium.
  • The shelf life of the LGN2H121MELA35 capacitor is 2 years from the date of manufacture, as long as it is stored in a dry, cool place with minimal humidity.
