LGN2H151MELA45 - Nichicon

Description: Nichicon 150μF 500 V Aluminium Electrolytic Capacitor, GN Series 3000h 25 (Dia.) x 45mm

Download LGN2H151MELA45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGN2H151MELA45 - Nichicon - PCB symbol
click to zoom
PCB Footprints

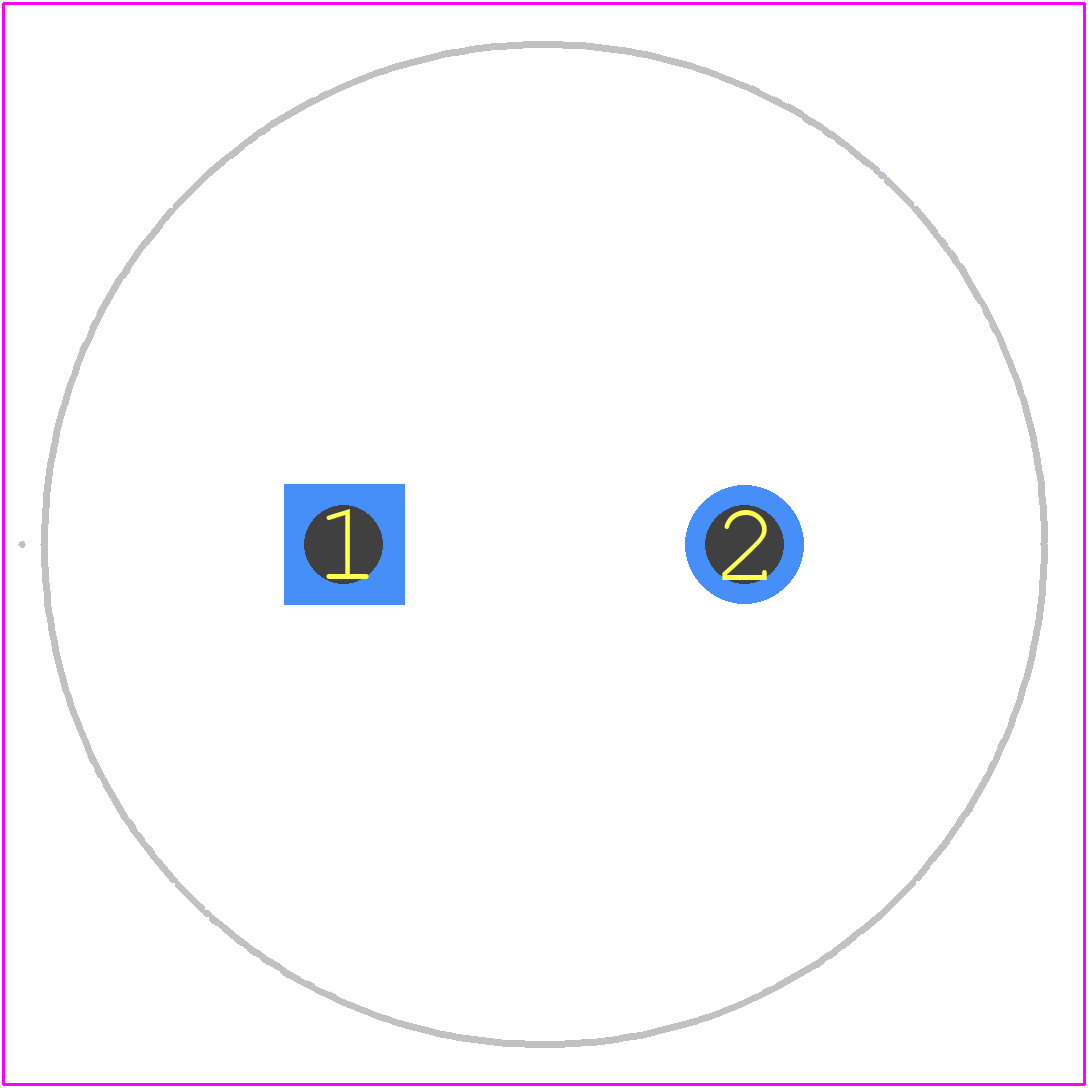

LGN2H151MELA45 - Nichicon PCB footprint - Other - Other - 25mm x 45mm_2025-2.1
click to zoom
3D Models
LGN2H151MELA45 - Nichicon - 3D model - Other - 25mm x 45mm_2025-2.1
click to zoom

LGN2H151MELA45 Details

  • Manufacturer Part Number:

    LGN2H151MELA45

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    150 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.82 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Ripple Current:

    750 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGN2H151MELA45 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGN2H151MELA45 is designed to withstand high vibrations and is suitable for use in applications such as automotive, industrial, and aerospace systems.
  • The ESR of the LGN2H151MELA45 is relatively low, which means it can handle high-frequency switching and reduce energy losses, making it suitable for high-power applications.
  • Yes, the LGN2H151MELA45 is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The derating curve for the LGN2H151MELA45 can be found in the Nichicon Corporation's application notes or by contacting their technical support team directly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGN2H151MELA45 Overview

Use the download button to access the LGN2H151MELA45 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGN2H, or try a keyword search, such as Aluminum Electrolytic Capacitors
