LGU1E153MELB - Nichicon

Description: Nichicon 15000μF 25 V Aluminium Electrolytic Capacitor, GU Series 3000h 30 (Dia.) x 35mm

Download LGU1E153MELB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU1E153MELB - Nichicon - PCB symbol
click to zoom
PCB Footprints

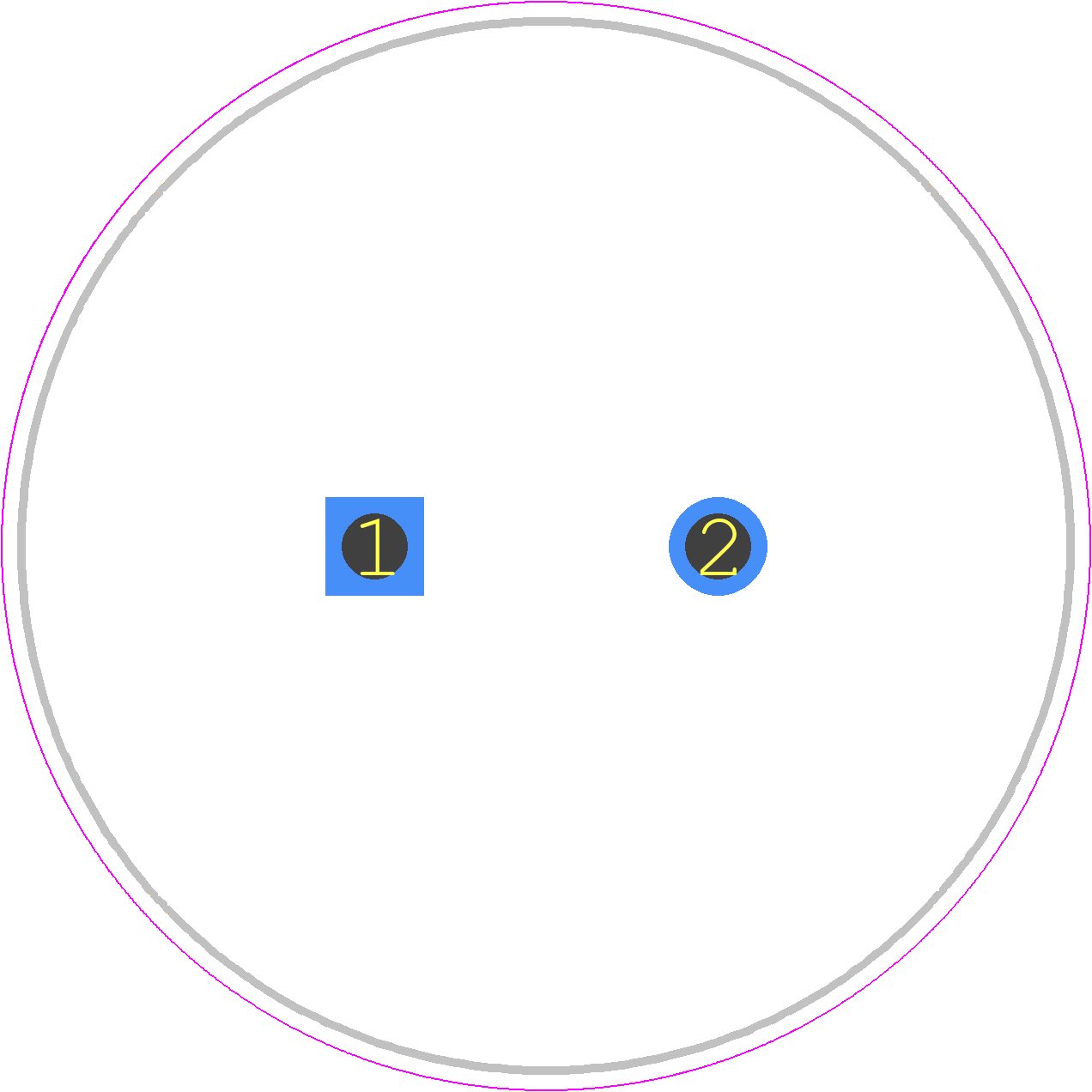

LGU1E153MELB - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30*35
click to zoom
3D Models
LGU1E153MELB - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 30*35
click to zoom

LGU1E153MELB Details

  • Manufacturer Part Number:

    LGU1E153MELB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    15000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.83 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Ripple Current:

    3130 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.4

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU1E153MELB Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGU1E153MELB capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, and cadmium.
  • The derating curve for the LGU1E153MELB capacitor can be obtained from Nichicon Corporation's application notes or by contacting their technical support. The derating curve provides guidance on how to reduce the capacitor's voltage rating based on operating temperature and other factors.
  • Yes, the LGU1E153MELB capacitor is suitable for high-frequency applications up to 100 kHz. However, it's essential to consider the capacitor's impedance, ESR, and other characteristics when designing high-frequency circuits.
  • The shelf life of the LGU1E153MELB capacitor is typically 2 years from the date of manufacture when stored in a dry, cool place. It's essential to follow proper storage and handling procedures to maintain the capacitor's performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGU1E153MELB Overview

Use the download button to access the LGU1E153MELB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGU1E, or try a keyword search, such as Aluminum Electrolytic Capacitors
