LGU1E223MELC - Nichicon

Description: Nichicon 22000μF 25 V Aluminium Electrolytic Capacitor, GU Series 3000h 35 (Dia.) x 35mm , -40°C ~ 105°C

Download LGU1E223MELC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU1E223MELC - Nichicon - PCB symbol
click to zoom
PCB Footprints

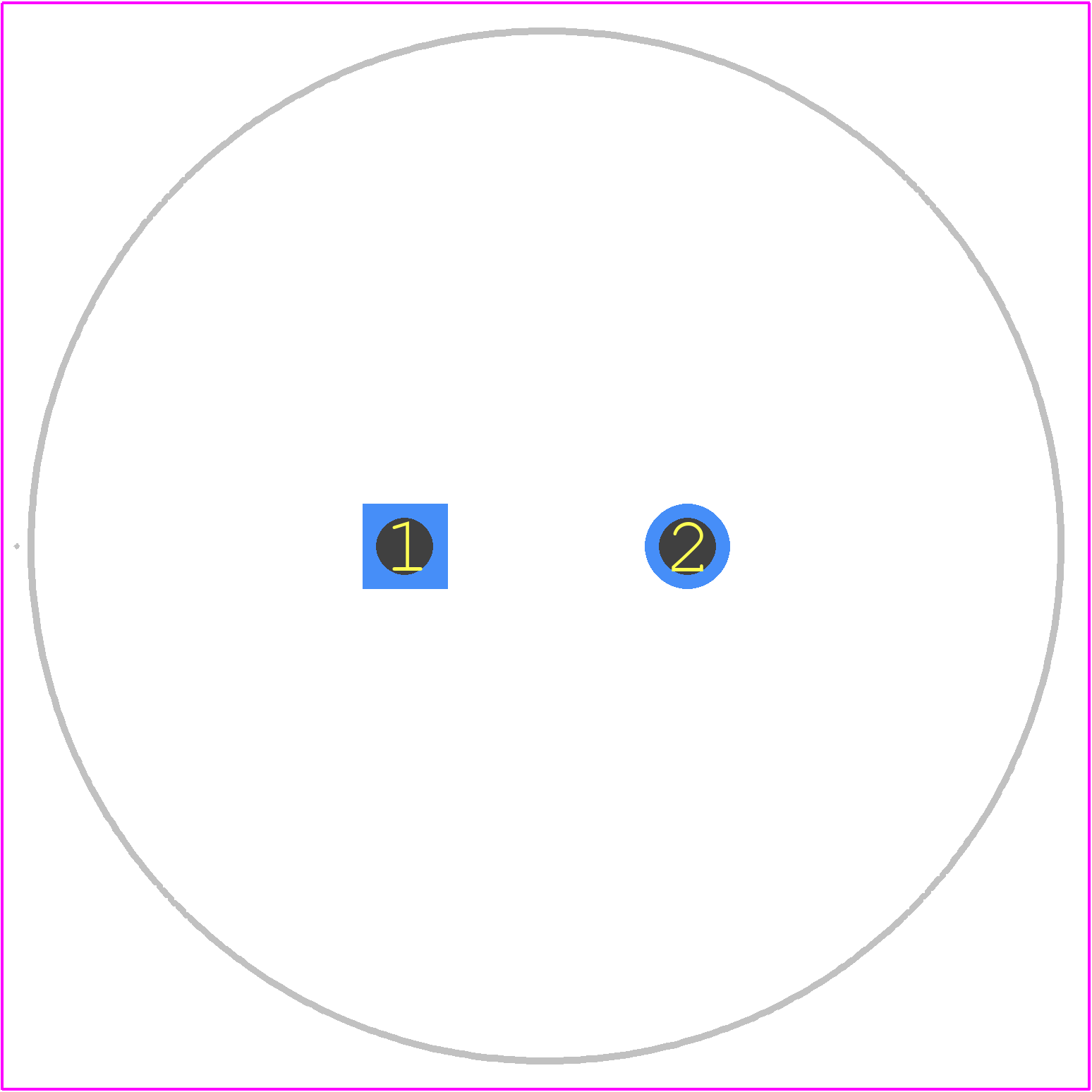

LGU1E223MELC - Nichicon PCB footprint - Other - Other - 35mm x 35mm_2026-1.19
