LGU1H182MELZ - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 50volts 1800uF 105c 22x25x10L/S

Download LGU1H182MELZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU1H182MELZ - Nichicon - PCB symbol
click to zoom
PCB Footprints

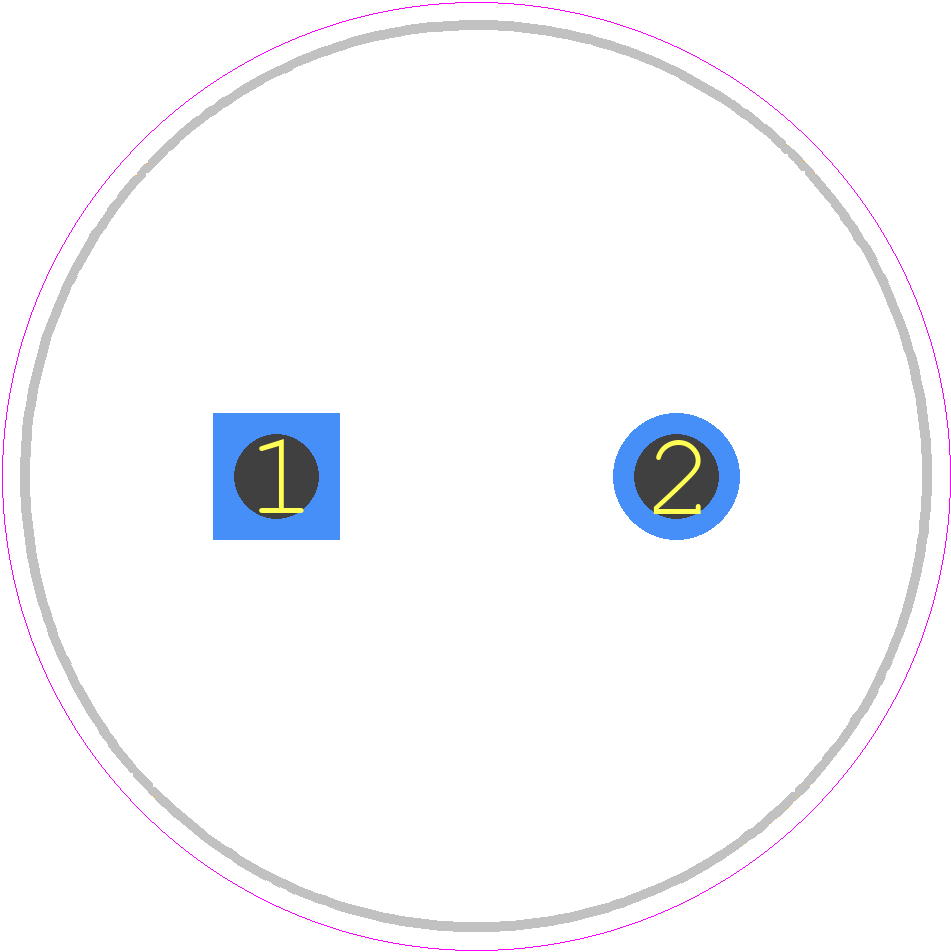

LGU1H182MELZ - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22 × 25
click to zoom
3D Models
LGU1H182MELZ - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 22 × 25
click to zoom

LGU1H182MELZ Details

  • Manufacturer Part Number:

    LGU1H182MELZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    7

  • Capacitance:

    1800 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.9 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    1340 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.3

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU1H182MELZ Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGU1H182MELZ capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, and cadmium above the specified limits.
  • The ESR of the LGU1H182MELZ capacitor is typically around 10-20 mohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • Yes, the LGU1H182MELZ capacitor is designed to withstand high-vibration environments and is suitable for use in applications such as automotive, industrial, and aerospace systems.
  • The shelf life of the LGU1H182MELZ capacitor is typically 2 years from the date of manufacture, but this can vary depending on storage conditions and handling practices.
