LGU1H472MELA - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 50volts 4700uF 0.2L/S

Download LGU1H472MELA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU1H472MELA - Nichicon - PCB symbol
click to zoom

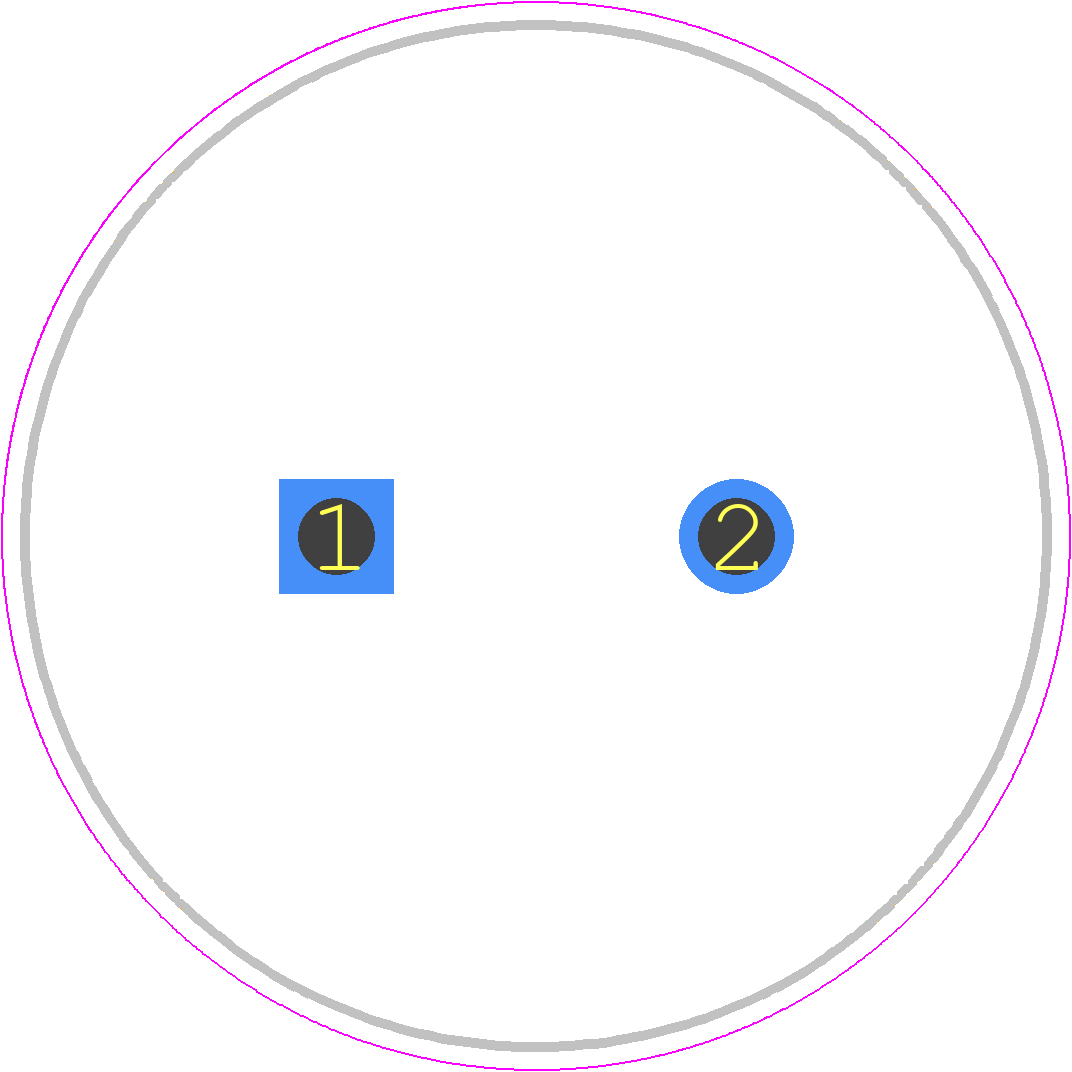

PCB Footprints
LGU1H472MELA - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25*35_1
click to zoom
3D Models
LGU1H472MELA - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25*35_1
click to zoom

LGU1H472MELA Details

  • Manufacturer Part Number:

    LGU1H472MELA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    7

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e2

  • Leakage Current:

    1.45 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    2610 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.3

  • Terminal Finish:

    Matte Tin/Copper (Sn/Cu)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU1H472MELA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the LGU1H472MELA is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm amplitude, and can be used in high-vibration applications.
  • The LGU1H472MELA is designed to operate in temperatures up to 125°C, but its capacitance and ESR may degrade at high temperatures. Consult the datasheet for temperature derating information.
  • Yes, the LGU1H472MELA is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The recommended storage condition for the LGU1H472MELA is in a dry, cool place, away from direct sunlight, with a temperature range of 5°C to 30°C and humidity below 70%.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGU1H472MELA Overview

Use the download button to access the LGU1H472MELA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGU1H, or try a keyword search, such as Aluminum Electrolytic Capacitors
