LGU1H682MELA - Nichicon

Description: Nichicon 6800μF 50 V Aluminium Electrolytic Capacitor, GU Series 3000h 25 (Dia.) x 45mm

Download LGU1H682MELA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU1H682MELA - Nichicon - PCB symbol
click to zoom
PCB Footprints

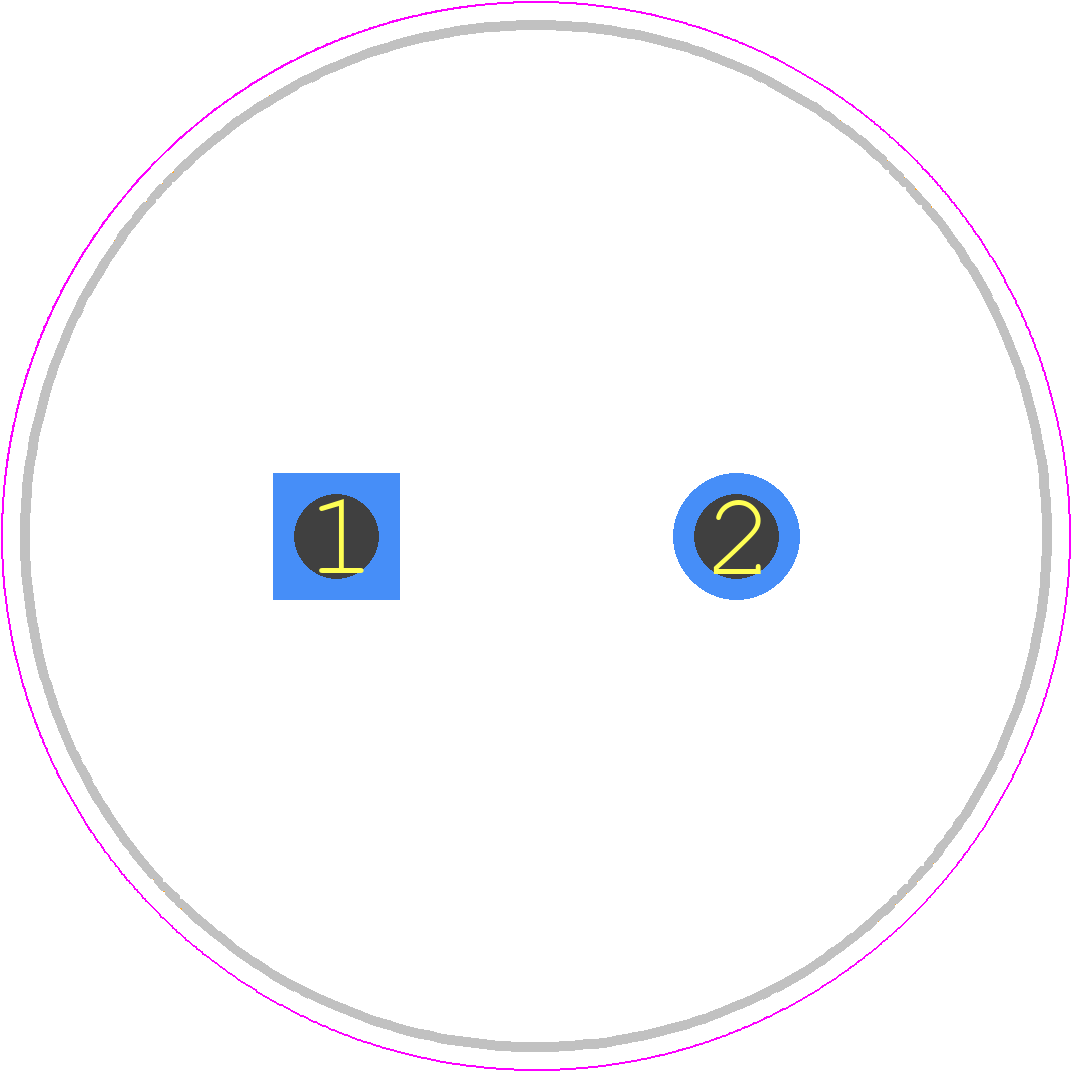

LGU1H682MELA - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25mm x 45mm_2026
click to zoom
3D Models
LGU1H682MELA - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25mm x 45mm_2026
click to zoom

LGU1H682MELA Details

  • Manufacturer Part Number:

    LGU1H682MELA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    7

  • Capacitance:

    6800 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.74 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    3370 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.3

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU1H682MELA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the LGU1H682MELA is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and mounting.
  • The LGU1H682MELA is designed to operate in humid environments, but it's recommended to follow the manufacturer's guidelines for humidity testing and to ensure proper sealing and encapsulation.
  • The recommended storage condition is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%.
  • The LGU1H682MELA is designed to operate up to 105°C, but it's recommended to derate the voltage and current according to the manufacturer's guidelines for high-temperature applications.
