The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the Nichicon Corporation's recommended soldering conditions to prevent damage to the capacitor.
Yes, the LGU1J682MELC is designed to withstand high-vibration environments. Nichicon Corporation's datasheet specifies that the capacitor can withstand vibrations up to 10Hz to 2000Hz, 1.5mm single amplitude. However, it's essential to consult with the manufacturer or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
Yes, the LGU1J682MELC is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant. Nichicon Corporation ensures that their products meet the necessary environmental regulations and directives.
The shelf life of the LGU1J682MELC is typically 2 years from the date of manufacture, as long as the capacitor is stored in its original packaging and under recommended storage conditions (temperature: 5°C to 30°C, humidity: 60% or less). It's essential to follow proper storage and handling procedures to maintain the capacitor's performance and reliability.
The LGU1J682MELC is designed for general-purpose use and can operate up to 2000m (6561ft) above sea level. However, for applications above 2000m, it's recommended to consult with the manufacturer or a qualified engineer to ensure the capacitor meets the specific requirements of your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGU1J682MELC Overview

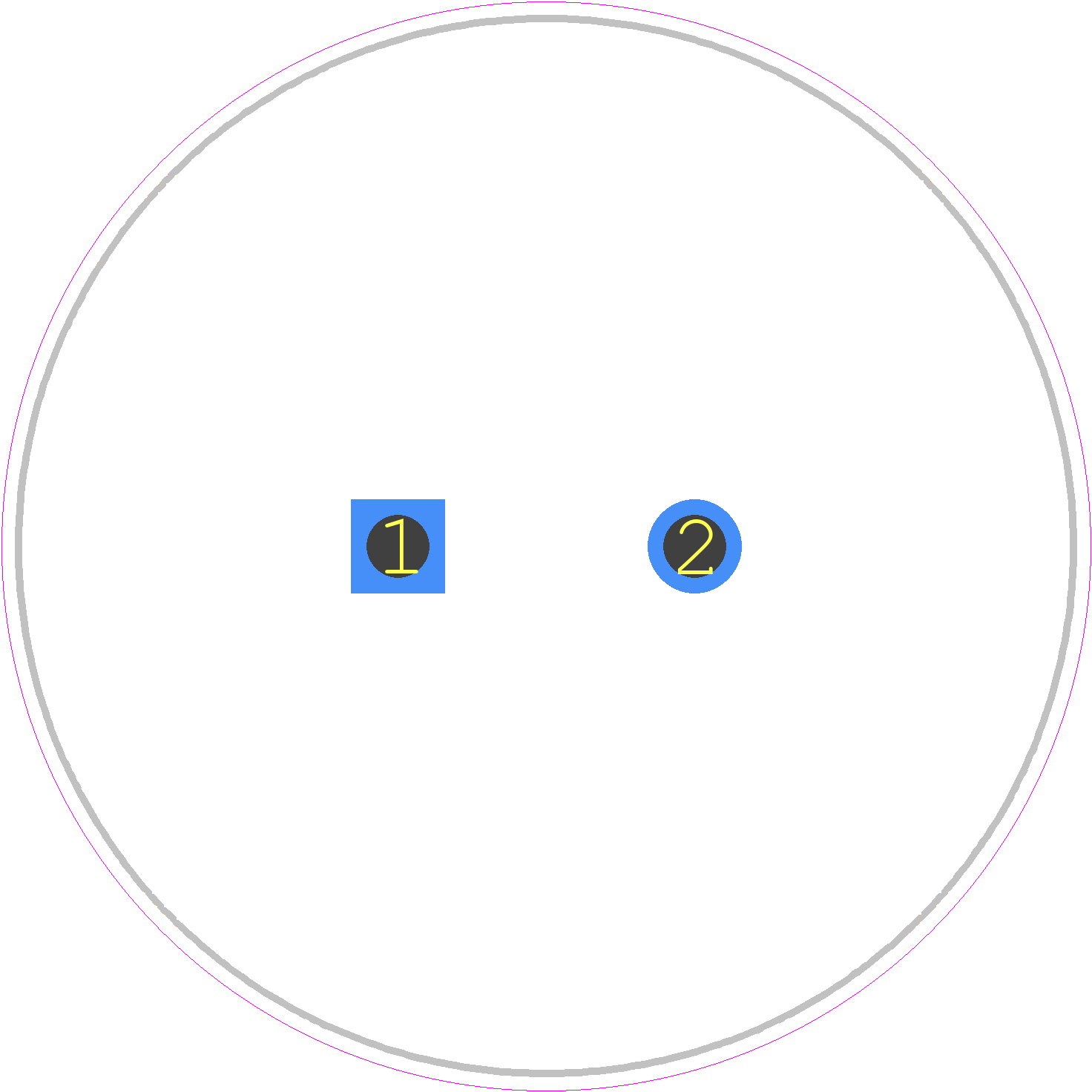

Use the download button to access the LGU1J682MELC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGU1J,
or try a keyword search, such as Aluminum Electrolytic Capacitors
