LGU1K472MELB - Nichicon

Description: 4700 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C , -40°C ~ 105°C

Download LGU1K472MELB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU1K472MELB - Nichicon - PCB symbol
click to zoom
PCB Footprints

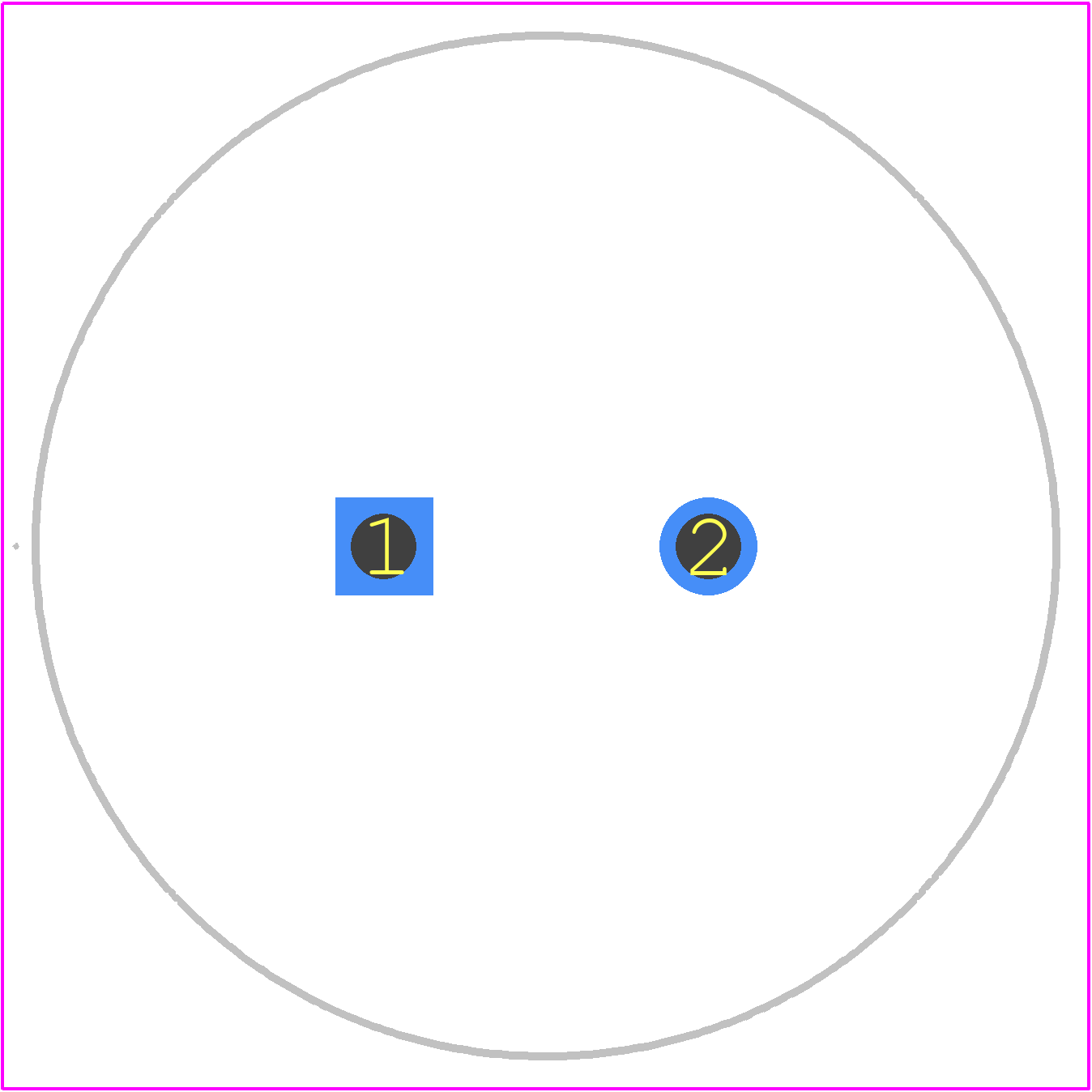

LGU1K472MELB - Nichicon PCB footprint - Other - Other - 30 x 45mm_2025-1.5
click to zoom
3D Models
LGU1K472MELB - Nichicon - 3D model - Other - 30 x 45mm_2025-1.5
click to zoom

LGU1K472MELB Details

  • Manufacturer Part Number:

    LGU1K472MELB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.83 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    80 V

  • Ripple Current:

    3520 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU1K472MELB Frequently Asked Questions (FAQs)

  • Nichicon recommends derating the voltage by 10-20% to ensure reliable operation and extend the lifespan of the capacitor.
  • The ESR of the LGU1K472MELB capacitor decreases with increasing frequency, but the exact values can be obtained from Nichicon's application notes or by contacting their technical support.
  • The LGU1K472MELB capacitor is rated for operation up to 105°C, but Nichicon recommends consulting their application notes for specific guidance on high-temperature applications.
  • Nichicon provides recommended land patterns and soldering guidelines in their application notes, which can be obtained from their website or by contacting their technical support.
  • The capacitance of the LGU1K472MELB capacitor decreases with increasing temperature, with a typical temperature coefficient of -55 ppm/°C.
