LGU1V682MELB - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 35volts 6800uF 105c 30x25x10L/S

Download LGU1V682MELB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU1V682MELB - Nichicon - PCB symbol
click to zoom
PCB Footprints

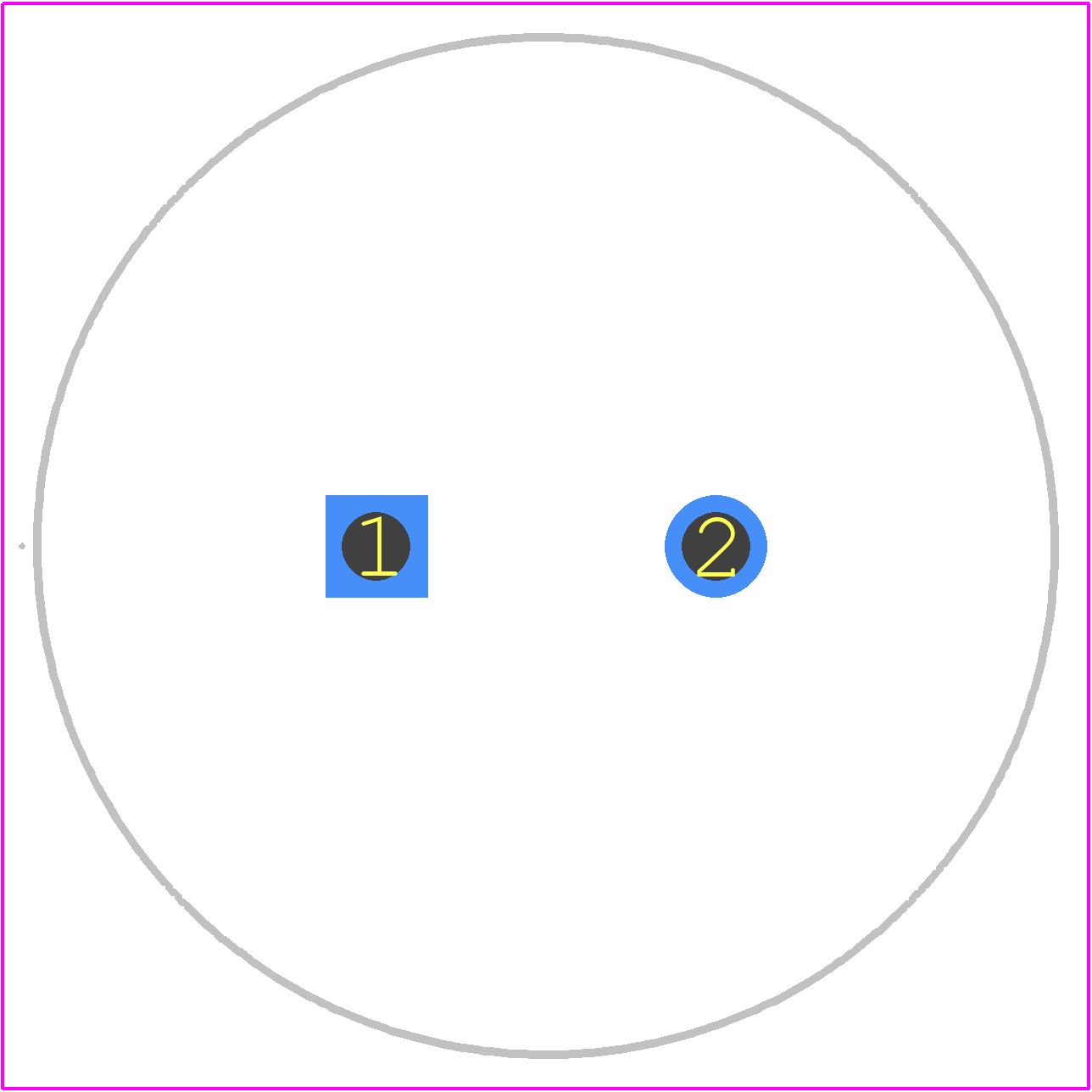

LGU1V682MELB - Nichicon PCB footprint - Other - Other - 30mm x 25mm-12
click to zoom
3D Models
LGU1V682MELB - Nichicon - 3D model - Other - 30mm x 25mm-12
click to zoom

LGU1V682MELB Details

  • Manufacturer Part Number:

    LGU1V682MELB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    7

  • Capacitance:

    6800 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.46 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    2310 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.35

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU1V682MELB Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGU1V682MELB capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LGU1V682MELB capacitor is typically around 0.02 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • The LGU1V682MELB capacitor has a maximum operating temperature of 125°C (257°F), but it can be used in high-temperature applications with derating. Consult the datasheet or manufacturer's application notes for more information.
