LGU2A222MELA - Nichicon

Description: Nichicon 2200μF 100 V Aluminium Electrolytic Capacitor, GU Series 3000h 25 (Dia.) x 50mm

Download LGU2A222MELA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU2A222MELA - Nichicon - PCB symbol
click to zoom
PCB Footprints

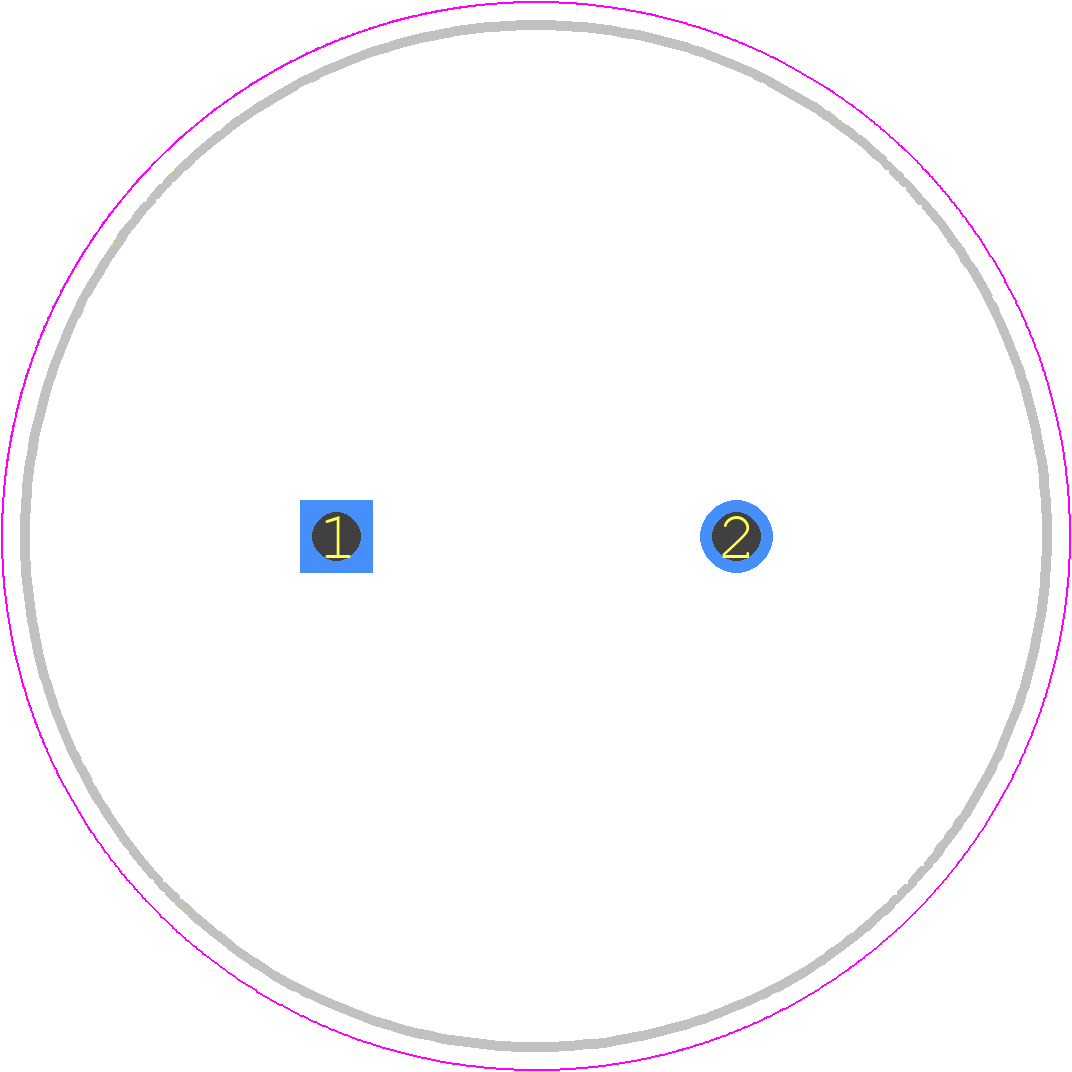

LGU2A222MELA - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25x50+
click to zoom
3D Models
LGU2A222MELA - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25x50+
click to zoom

LGU2A222MELA Details

  • Manufacturer Part Number:

    LGU2A222MELA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    2200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.4 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    2570 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU2A222MELA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the LGU2A222MELA is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.
  • The LGU2A222MELA is rated for operation up to 125°C, but its capacitance and ESR may degrade at high temperatures. Consult the datasheet for derating information.
  • Yes, the LGU2A222MELA is compatible with lead-free soldering processes, but ensure that the soldering temperature and time are within the recommended specifications.
  • Store the LGU2A222MELA in a dry, cool place, away from direct sunlight and moisture. Avoid storing the capacitor in a location with high humidity or extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGU2A222MELA Overview

Use the download button to access the LGU2A222MELA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGU2A, or try a keyword search, such as Aluminum Electrolytic Capacitors
