LGU2A272MELC - Nichicon

Description: 2700 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C , -40°C ~ 105°C

Download LGU2A272MELC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU2A272MELC - Nichicon - PCB symbol
click to zoom
PCB Footprints

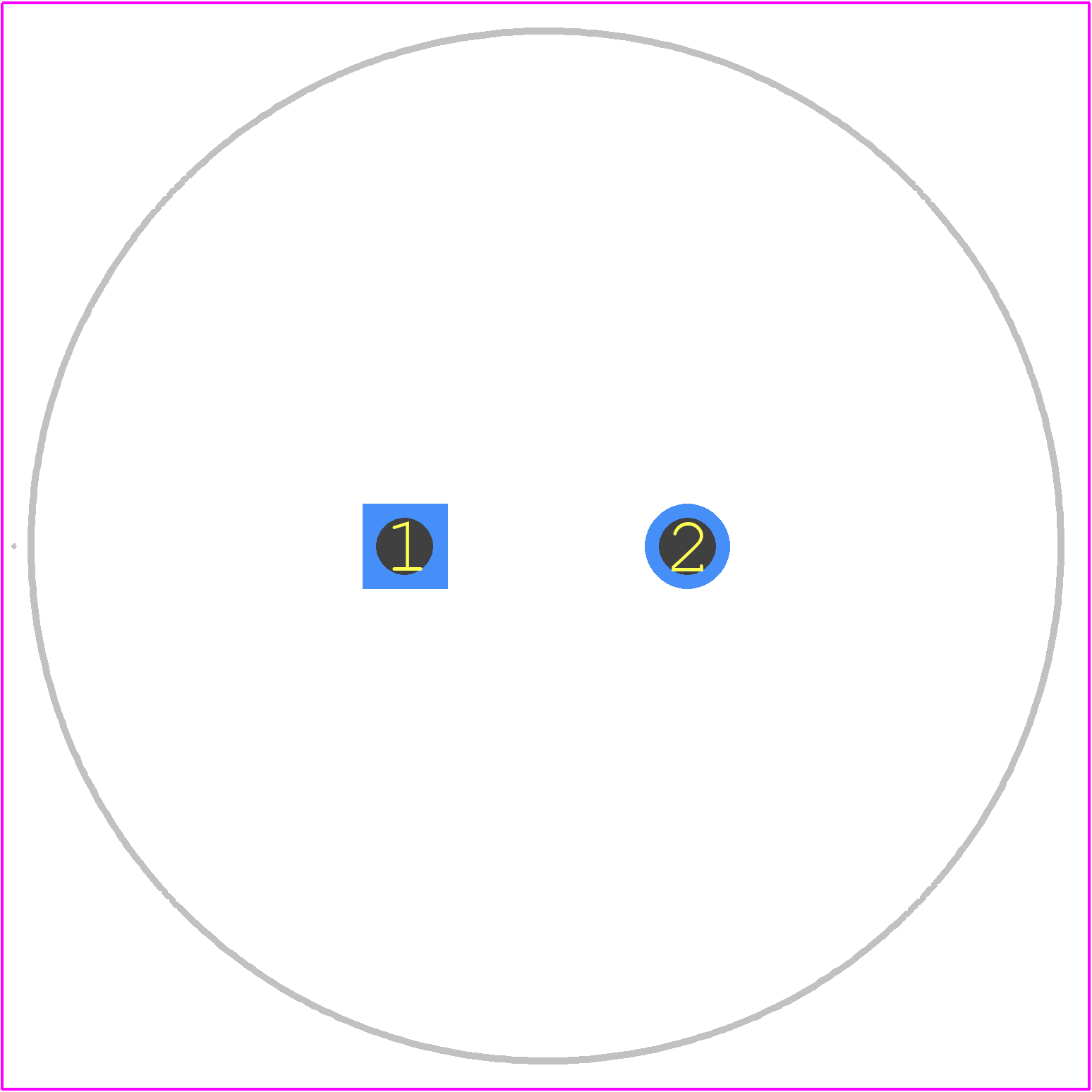

LGU2A272MELC - Nichicon PCB footprint - Other - Other - 35 x 35mm_2025-1.8
click to zoom
3D Models
LGU2A272MELC - Nichicon - 3D model - Other - 35 x 35mm_2025-1.8
click to zoom

LGU2A272MELC Details

  • Manufacturer Part Number:

    LGU2A272MELC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    2700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.55 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    2900 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU2A272MELC Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGU2A272MELC capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LGU2A272MELC capacitor is typically around 30-50 mΩ at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • Yes, the LGU2A272MELC capacitor is designed to withstand high-vibration and high-shock environments, making it suitable for use in industrial, automotive, and other demanding applications.
  • The MSL of the LGU2A272MELC capacitor is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking or other special handling.
