LGW2D182MELB50 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 200volts 1800uF Snap-In

Download LGW2D182MELB50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGW2D182MELB50 - Nichicon - PCB symbol
click to zoom
PCB Footprints

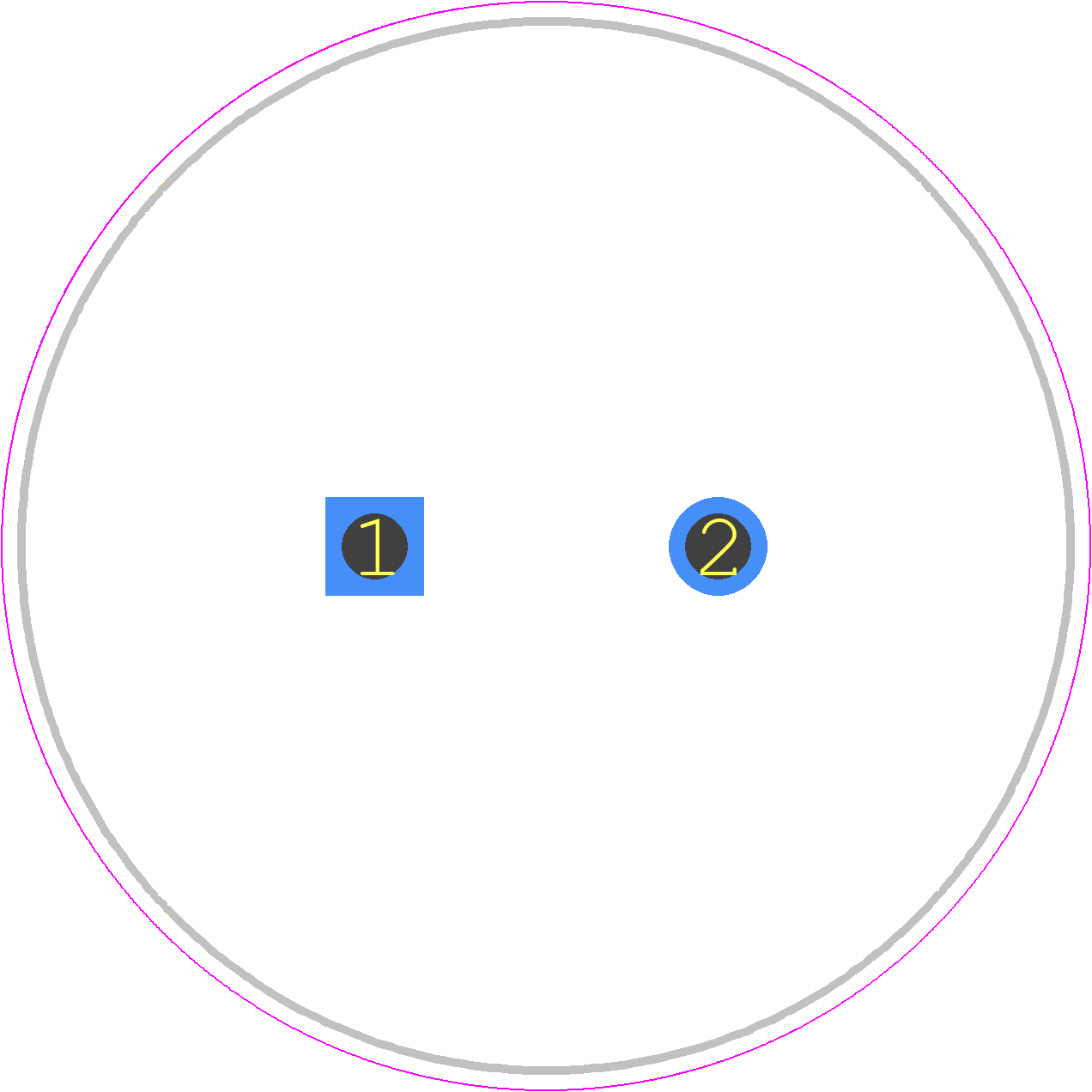

LGW2D182MELB50 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30x50
click to zoom
3D Models
LGW2D182MELB50 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 30x50
click to zoom

LGW2D182MELB50 Details

  • Manufacturer Part Number:

    LGW2D182MELB50

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    1800 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.8 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    CYLINDRICAL

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    200 V

  • Ripple Current:

    5220 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGW2D182MELB50 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGW2D182MELB50 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, and cadmium above the allowed limits.
  • The ESR of the LGW2D182MELB50 capacitor is 0.02 ohms or less at 100 kHz and 20°C (68°F).
  • Yes, the LGW2D182MELB50 capacitor is designed to withstand high-vibration environments and can be used in applications such as automotive, industrial, and aerospace systems.
  • The shelf life of the LGW2D182MELB50 capacitor is 2 years from the date of manufacture when stored in a dry, cool place with a relative humidity of 60% or less.
