LGW2D222MELC45 - Nichicon

Description: Nichicon 2200μF 200 V Aluminium Electrolytic Capacitor, GW Series 3000h 35 (Dia.) x 45mm

Download LGW2D222MELC45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGW2D222MELC45 - Nichicon - PCB symbol
click to zoom
PCB Footprints

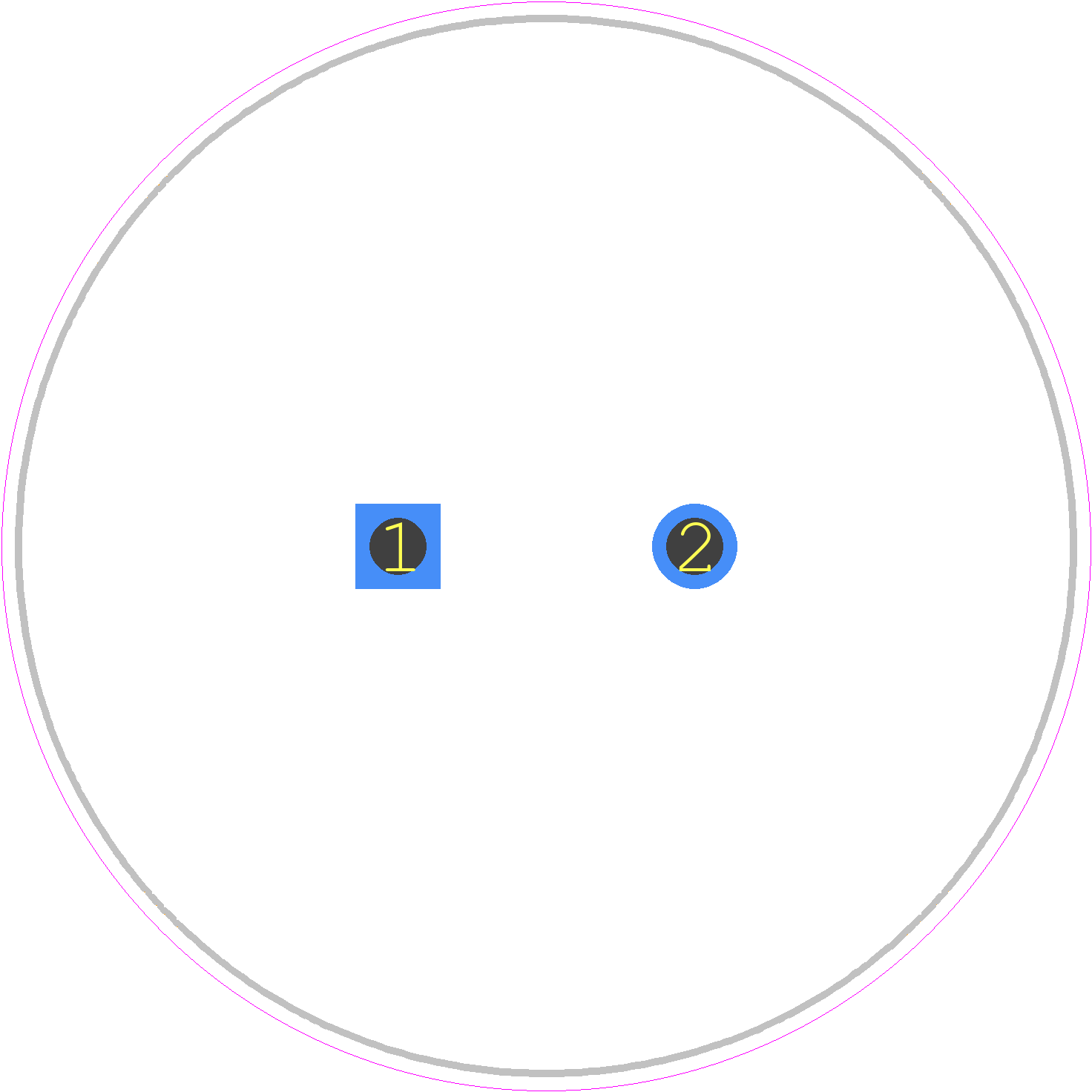

LGW2D222MELC45 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LGW2D222MELC4
click to zoom
3D Models
LGW2D222MELC45 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LGW2D222MELC4
click to zoom

LGW2D222MELC45 Details

  • Manufacturer Part Number:

    LGW2D222MELC45

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    2200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.98 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    CYLINDRICAL

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    200 V

  • Ripple Current:

    5220 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGW2D222MELC45 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is between 250°C to 260°C for 3 seconds to 5 seconds.
  • Yes, the LGW2D222MELC45 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The ESR of LGW2D222MELC45 is typically around 0.02 ohms at 100 kHz, but it's recommended to check the datasheet or contact Nichicon Corporation for the most up-to-date and accurate information.
  • Yes, the LGW2D222MELC45 capacitor is designed to withstand high-vibration environments, with a vibration endurance of 10 Hz to 2000 Hz, 1.5 mm amplitude, and 3 hours per axis.
  • The shelf life of LGW2D222MELC45 is typically 2 years from the date of manufacture, but it's recommended to follow proper storage conditions and check the capacitor's performance before using it in a production environment.
