LGW2D681MELA35 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 200volts 680uF Snap-In

Download LGW2D681MELA35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGW2D681MELA35 - Nichicon - PCB symbol
click to zoom
PCB Footprints

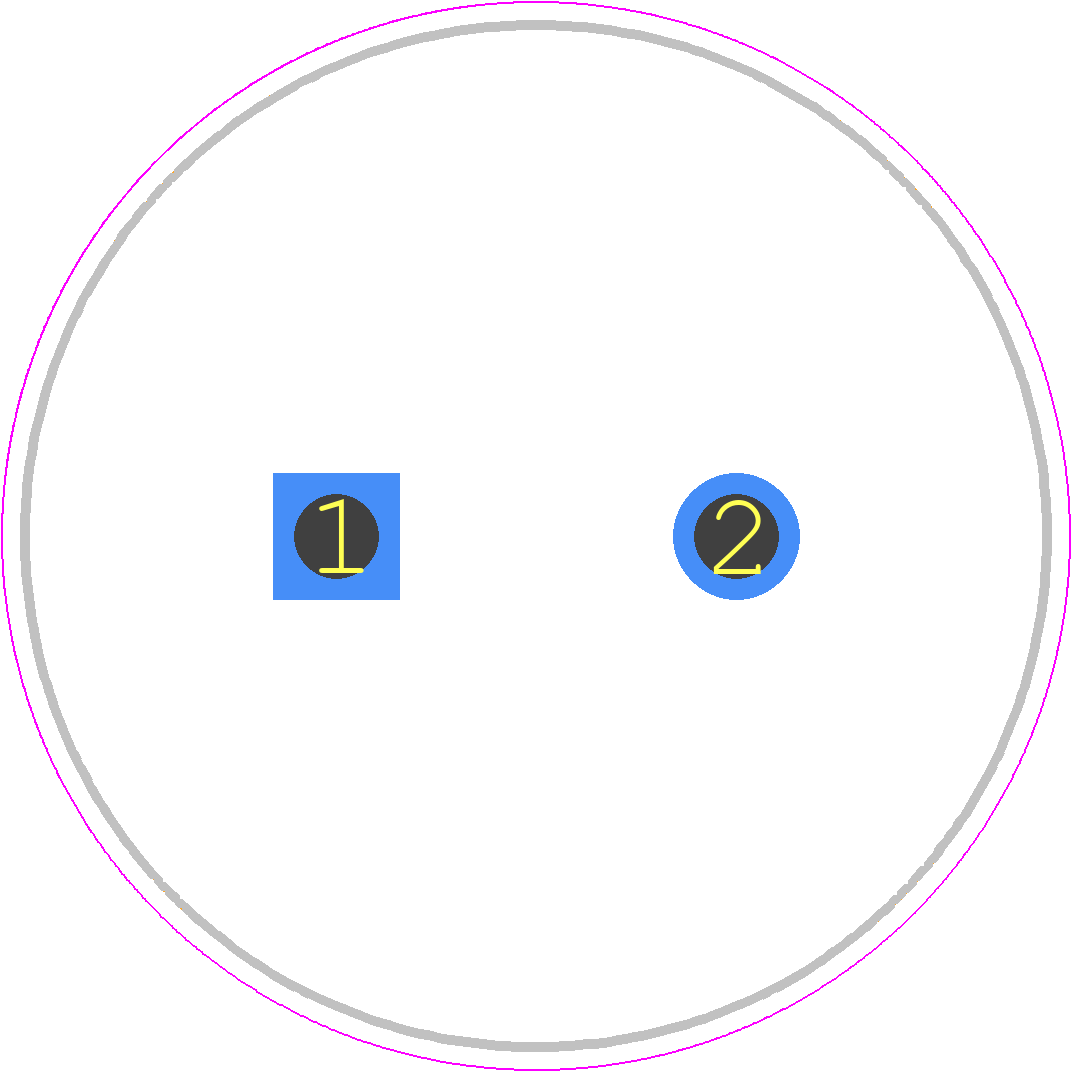

LGW2D681MELA35 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25 x 35
click to zoom
3D Models
LGW2D681MELA35 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25 x 35
click to zoom

LGW2D681MELA35 Details

  • Manufacturer Part Number:

    LGW2D681MELA35

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    680 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.1 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    CYLINDRICAL

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    200 V

  • Ripple Current:

    2650 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGW2D681MELA35 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for LGW2D681MELA35 is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, LGW2D681MELA35 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The ESR of LGW2D681MELA35 is typically around 10 mohm at 100 kHz, but it's recommended to check the datasheet or contact Nichicon Corporation for the latest specifications.
  • Yes, LGW2D681MELA35 is designed to withstand high-vibration environments, with a vibration endurance of 10 Hz to 2000 Hz, 1.5 mm amplitude.
  • The shelf life of LGW2D681MELA35 is typically 2 years from the date of manufacture, but it's recommended to store them in a cool, dry place and follow proper storage procedures to maintain their performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGW2D681MELA35 Overview

Use the download button to access the LGW2D681MELA35 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGW2D, or try a keyword search, such as Aluminum Electrolytic Capacitors
