LGW2E331MELA25 - Nichicon

Description: Cap Aluminum Lytic 330uF 250V 20% (25 X 25mm) Snap-In 10mm 1800mA 3000h 105°C Bulk

Download LGW2E331MELA25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGW2E331MELA25 - Nichicon - PCB symbol
click to zoom
PCB Footprints

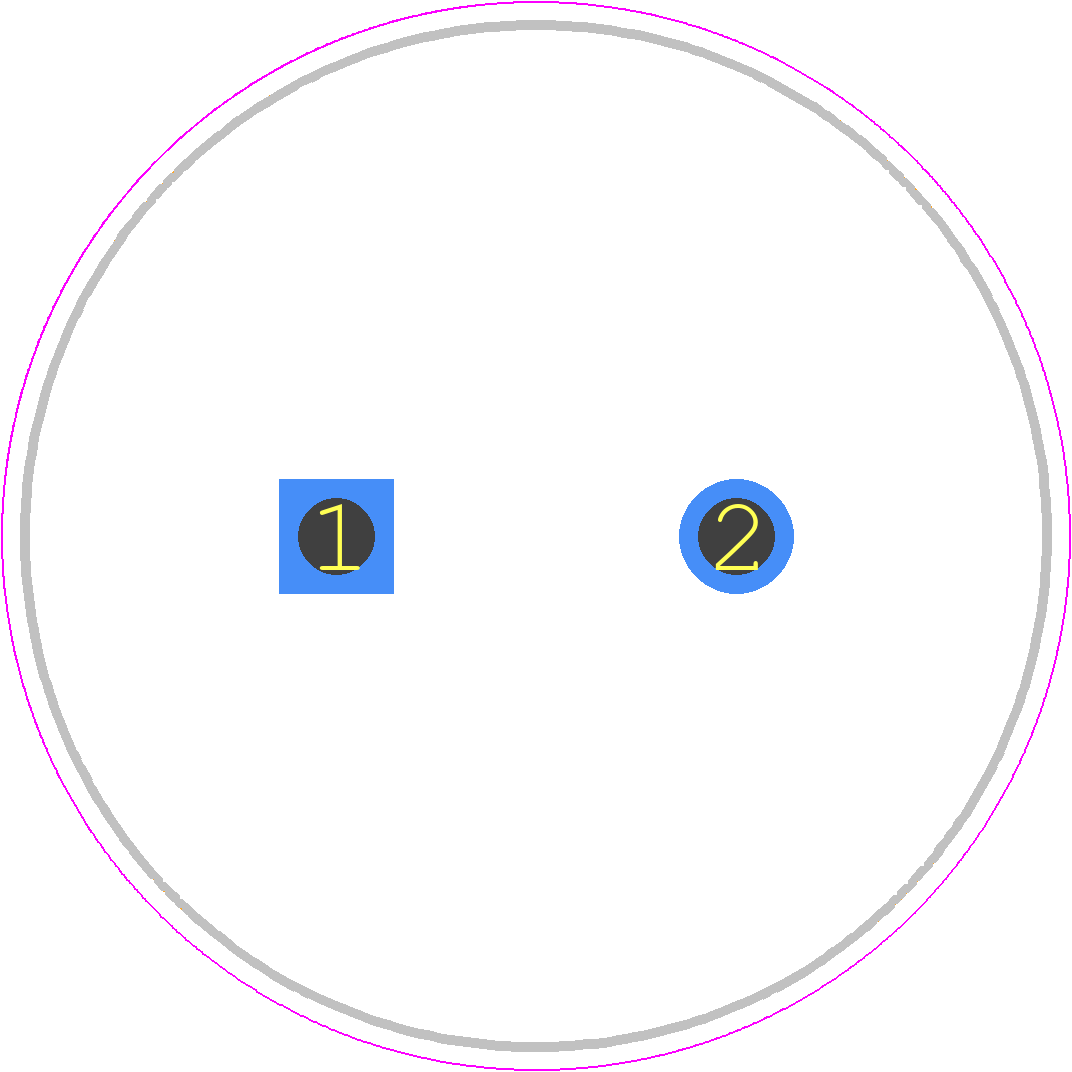

LGW2E331MELA25 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LGW2E331MELA25
click to zoom
3D Models
LGW2E331MELA25 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LGW2E331MELA25
click to zoom

LGW2E331MELA25 Details

  • Manufacturer Part Number:

    LGW2E331MELA25

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.86 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    CYLINDRICAL

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    1800 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGW2E331MELA25 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the LGW2E331MELA25 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and mounting.
  • The LGW2E331MELA25 is rated for operation up to 125°C, but its capacitance and ESR may degrade at high temperatures. Consult the datasheet for temperature derating information.
  • Yes, the LGW2E331MELA25 is compatible with lead-free soldering processes, but ensure that the soldering temperature and time are within the recommended specifications.
  • Store the LGW2E331MELA25 in a dry, cool place, away from direct sunlight and moisture, with a relative humidity of 60% or less.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGW2E331MELA25 Overview

Use the download button to access the LGW2E331MELA25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGW2E, or try a keyword search, such as Aluminum Electrolytic Capacitors
