The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. However, it's essential to follow the Nichicon Corporation's recommended soldering profile and guidelines to ensure the capacitor's reliability and performance.
While the LGW2E391MELA30 is a high-reliability capacitor, it's not specifically designed for high-vibration or high-shock applications. If your design requires such conditions, you should consider using capacitors with specialized vibration and shock resistance, such as those with flexible terminals or conformal coating.
The LGW2E391MELA30 has a standard epoxy resin coating, which provides some level of moisture resistance. However, it's not designed for extreme humidity or moisture-rich environments. If your application requires high humidity or moisture resistance, consider using capacitors with specialized coatings or hermetically sealed designs.
The ESR of the LGW2E391MELA30 is not explicitly stated in the datasheet. However, based on similar capacitors from Nichicon Corporation, the ESR is typically around 10-20 mohms at 100 kHz. For more accurate information, contact Nichicon Corporation or consult their application notes.
The LGW2E391MELA30 is rated for operation up to 125°C. While it may be possible to use it in higher temperature applications, the capacitor's performance, reliability, and lifespan may be affected. Consult Nichicon Corporation for guidance on high-temperature applications or consider using capacitors specifically designed for high-temperature operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGW2E391MELA30 Overview

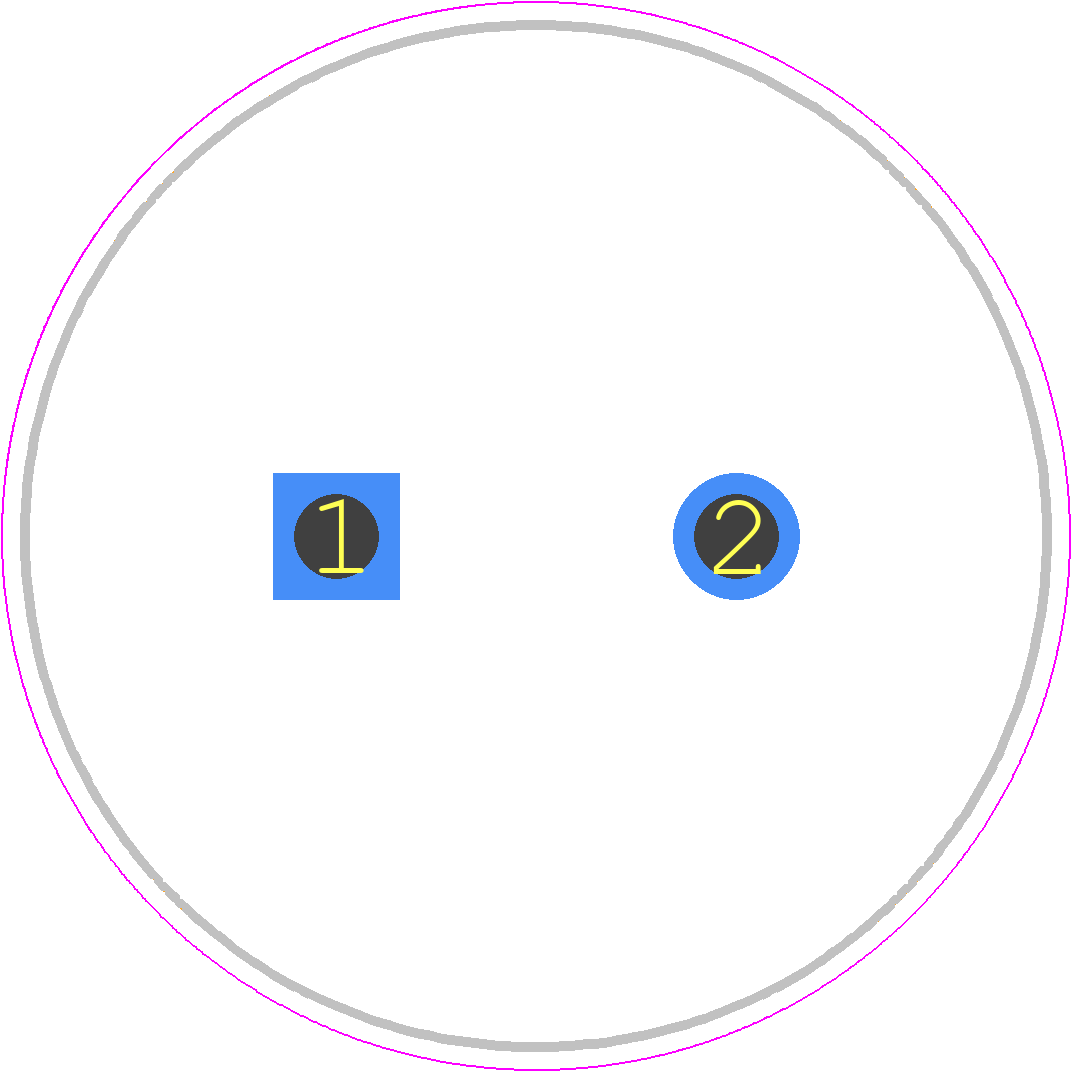

Use the download button to access the LGW2E391MELA30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGW2E,
or try a keyword search, such as Aluminum Electrolytic Capacitors
