LGW2G101MELZ25 - Nichicon

Description: Nichicon 100μF 400 V Aluminium Electrolytic Capacitor, GW Series 3000h 22 (Dia.) x 25mm

Download LGW2G101MELZ25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGW2G101MELZ25 - Nichicon - PCB symbol
click to zoom
PCB Footprints

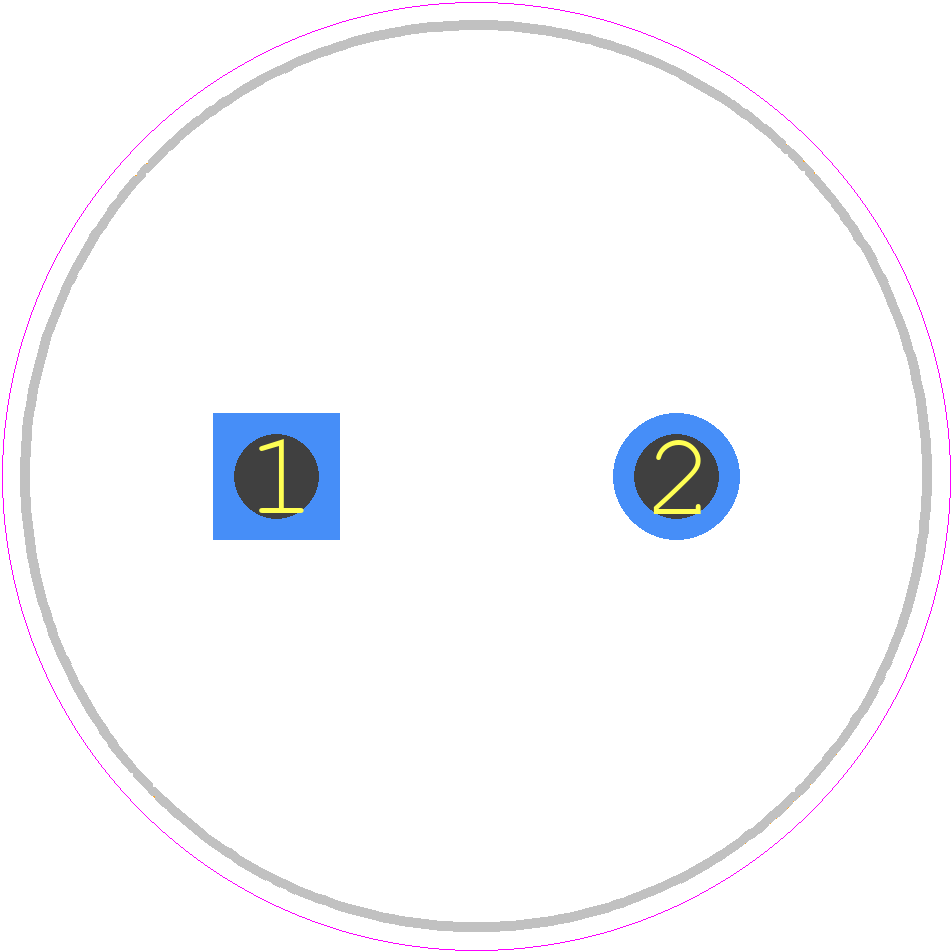

LGW2G101MELZ25 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22*25
click to zoom
3D Models
LGW2G101MELZ25 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 22*25
click to zoom

LGW2G101MELZ25 Details

  • Manufacturer Part Number:

    LGW2G101MELZ25

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.6 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    CYLINDRICAL

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    1020 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGW2G101MELZ25 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the LGW2G101MELZ25 is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, making it suitable for high-vibration applications.
  • The LGW2G101MELZ25 is rated for operation up to 125°C, with a derating of capacitance and impedance at higher temperatures. Consult the datasheet for specific derating curves.
  • Yes, the LGW2G101MELZ25 is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
  • The recommended storage condition is in a dry, cool place, away from direct sunlight, with a temperature range of 5°C to 30°C and humidity below 70%.
