LGW2W221MELA45 - Nichicon

Description: High Ripple current. Withstanding 3000 hours application of rated ripple current at 105°C. Compliant to the RoHS directive (2011/65/EU,(EU)2015/863).

Download LGW2W221MELA45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGW2W221MELA45 - Nichicon - PCB symbol
click to zoom
PCB Footprints

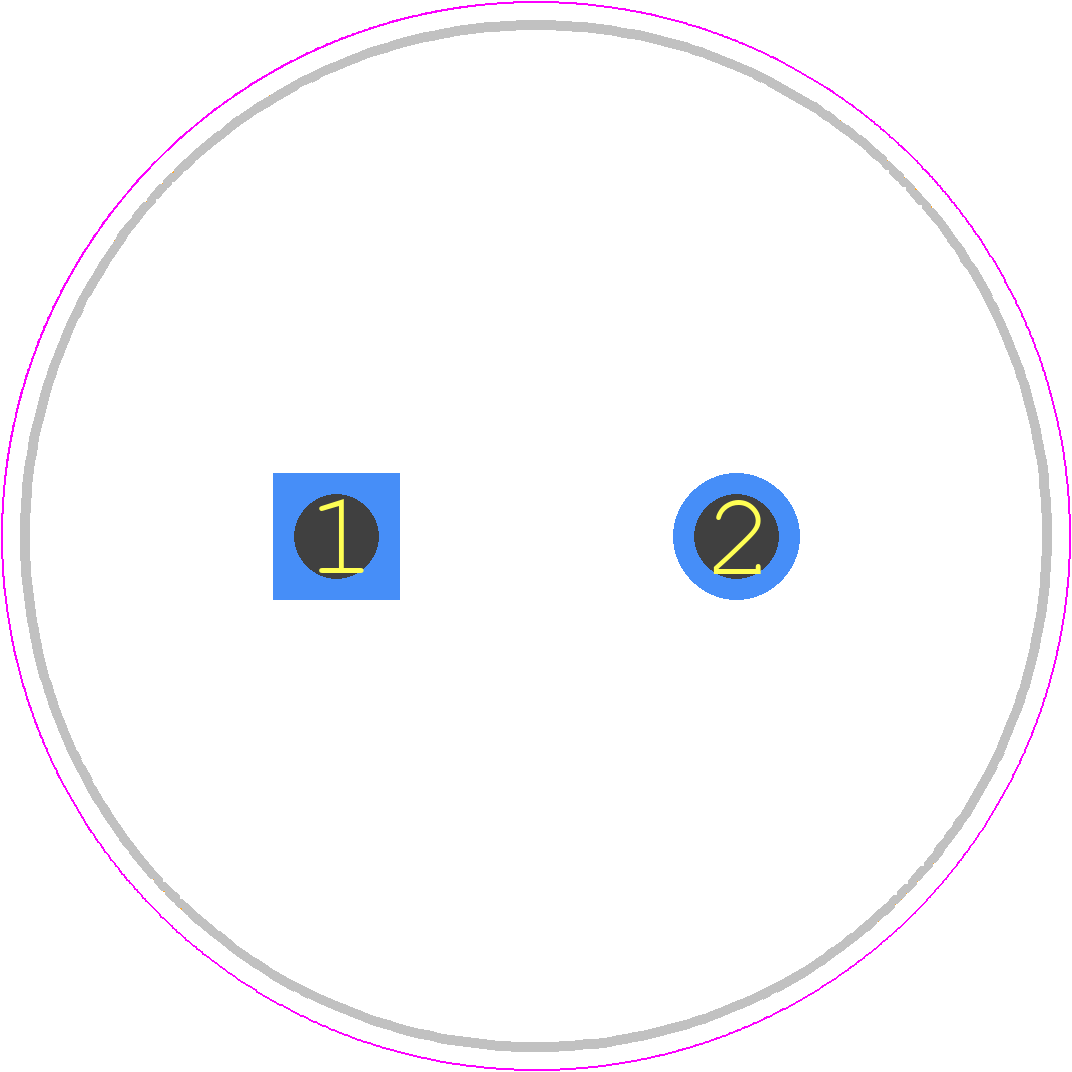

LGW2W221MELA45 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25mm x 45mm
click to zoom
3D Models
LGW2W221MELA45 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25mm x 45mm
click to zoom

LGW2W221MELA45 Details

  • Manufacturer Part Number:

    LGW2W221MELA45

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.94 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    CYLINDRICAL

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1550 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGW2W221MELA45 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the LGW2W221MELA45 is designed to withstand high vibrations and can be used in applications where vibration is a concern.
  • Yes, the LGW2W221MELA45 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The derating curve for the LGW2W221MELA45 can be found in the Nichicon Corporation's application notes or by contacting their technical support team.
  • The LGW2W221MELA45 has a maximum operating temperature of 125°C, but it can be used in high-temperature applications with proper derating and consideration of the capacitor's characteristics.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGW2W221MELA45 Overview

Use the download button to access the LGW2W221MELA45 schematic symbol, PCB footprint, and 3D model.
