The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the Nichicon Corporation's soldering guidelines to ensure the capacitor's reliability.
Yes, the LGX2D102MELB35 is designed to withstand vibrations up to 10Hz to 2000Hz, 10mm double amplitude, as per IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure the capacitor to prevent damage or dislodging.
The LGX2D102MELB35 is designed to reduce high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. It's suitable for high-frequency applications, such as decoupling and filtering in digital circuits.
Yes, the LGX2D102MELB35 capacitor is compliant with the RoHS (Restriction of Hazardous Substances) directive and the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulation. It does not contain hazardous substances like lead, mercury, or cadmium.
The shelf life of the LGX2D102MELB35 capacitor is 2 years from the date of manufacture, as long as it's stored in a dry, cool place, away from direct sunlight and moisture. It's essential to follow proper storage and handling procedures to maintain the capacitor's performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGX2D102MELB35 Overview

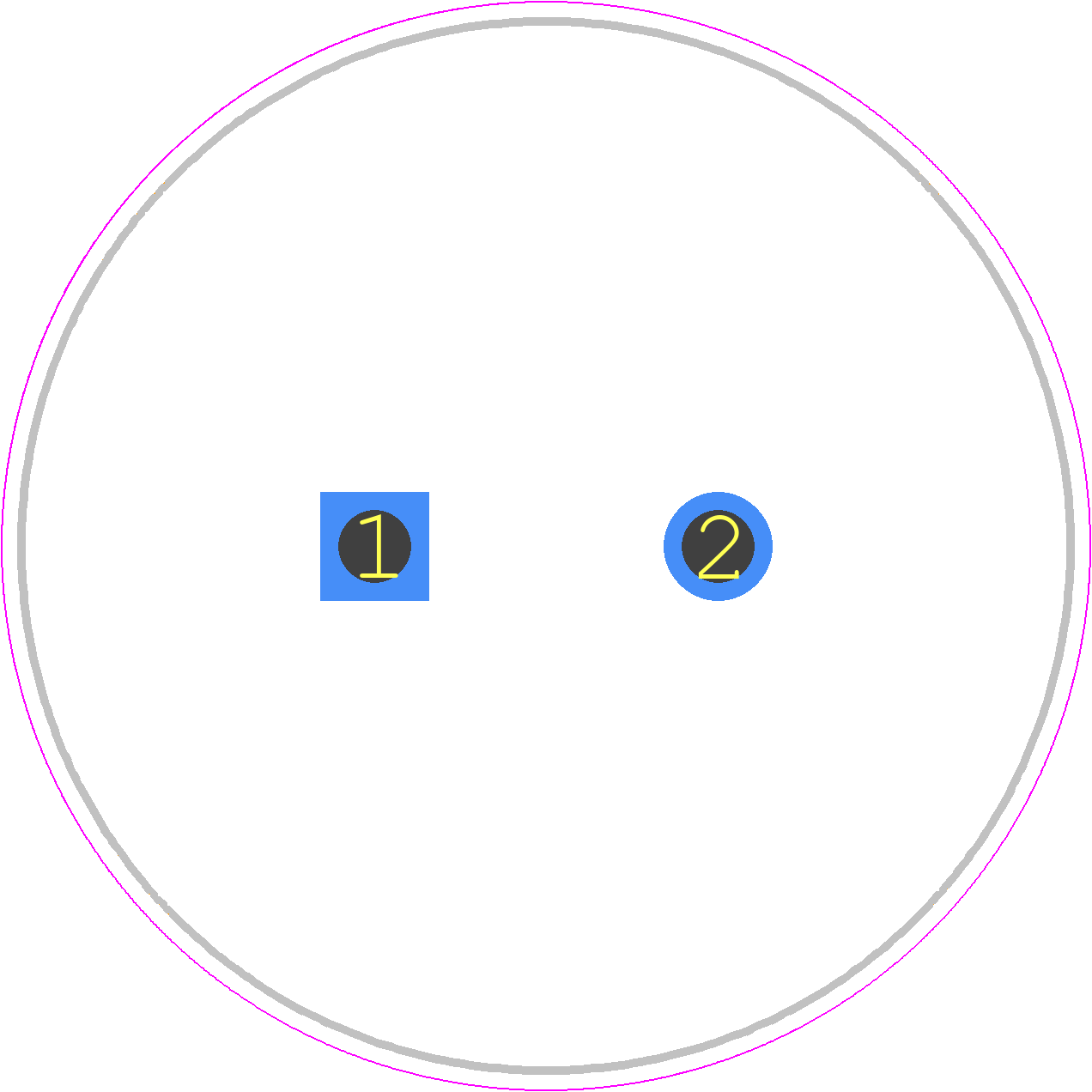

Use the download button to access the LGX2D102MELB35 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGX2D,
or try a keyword search, such as Aluminum Electrolytic Capacitors
