LGX2E152MELC45 - Nichicon

Description: 1500 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C , 1500 µF , 250 V , -25°C ~ 105°C

Download LGX2E152MELC45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGX2E152MELC45 - Nichicon - PCB symbol
click to zoom
PCB Footprints

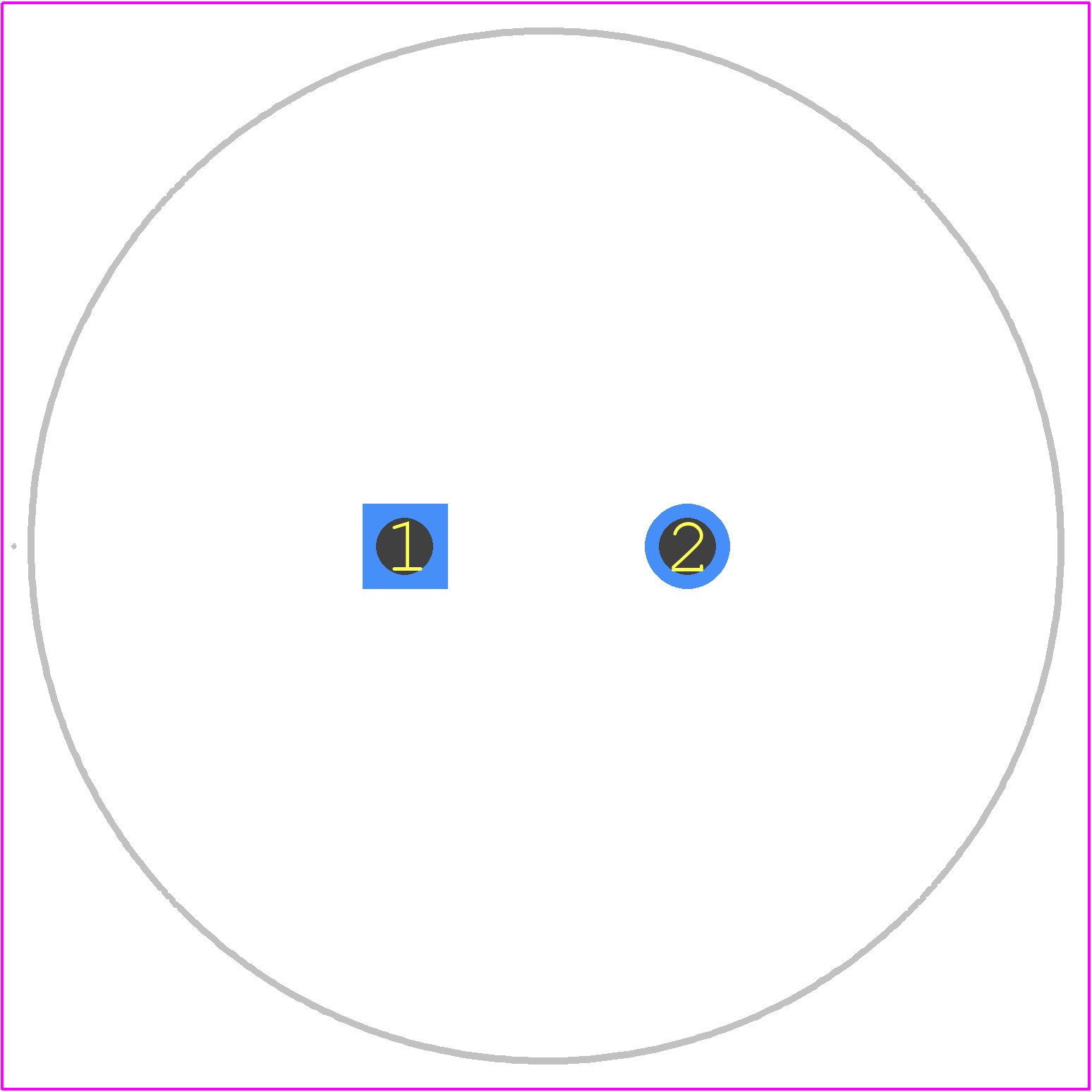

LGX2E152MELC45 - Nichicon PCB footprint - Other - Other - 35 x 45mm_2026
click to zoom
3D Models
LGX2E152MELC45 - Nichicon - 3D model - Other - 35 x 45mm_2026
click to zoom

LGX2E152MELC45 Details

  • Manufacturer Part Number:

    LGX2E152MELC45

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    1500 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.83 mA

  • Length:

    45 mm

  • Mounting Feature:

    CHASSIS MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Screw Ends

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    3050 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    BINDING POST

LGX2E152MELC45 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGX2E152MELC45 is designed to withstand vibrations up to 10Hz to 2000Hz, 10G acceleration, and is suitable for use in high-vibration environments.
  • Yes, the LGX2E152MELC45 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in EU and other regions with similar regulations.
  • The ESR of the LGX2E152MELC45 is typically around 0.02Ω at 100kHz, but this value can vary depending on the frequency and operating conditions.
  • The LGX2E152MELC45 is rated for operation up to 125°C, but its capacitance and ESR may degrade at higher temperatures. It's recommended to derate the capacitor's specifications according to the temperature derating curve provided in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGX2E152MELC45 Overview

Use the download button to access the LGX2E152MELC45 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGX2E, or try a keyword search, such as Aluminum Electrolytic Capacitors
