The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LGX2E821MELC30 is designed to withstand high-vibration environments. Nichicon Corporation conducts vibration tests according to IEC 60068-2-6, and the capacitor meets the requirements for vibration resistance.
The LGX2E821MELC30 is designed to operate in high-humidity environments. Nichicon Corporation conducts humidity tests according to IEC 60068-2-78, and the capacitor meets the requirements for humidity resistance. However, it's essential to follow the recommended storage and handling procedures to prevent moisture absorption.
The ESR of the LGX2E821MELC30 is not explicitly stated in the datasheet, but it can be estimated based on the capacitor's impedance characteristics. Typically, the ESR of an electrolytic capacitor like the LGX2E821MELC30 is in the range of 10-50 mΩ. For more accurate information, contact Nichicon Corporation or refer to their application notes.
Yes, the LGX2E821MELC30 is designed to handle high-ripple currents. The capacitor's ripple current rating is specified in the datasheet, and it's essential to ensure that the application's ripple current does not exceed the rated value to prevent overheating and premature failure.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGX2E821MELC30 Overview

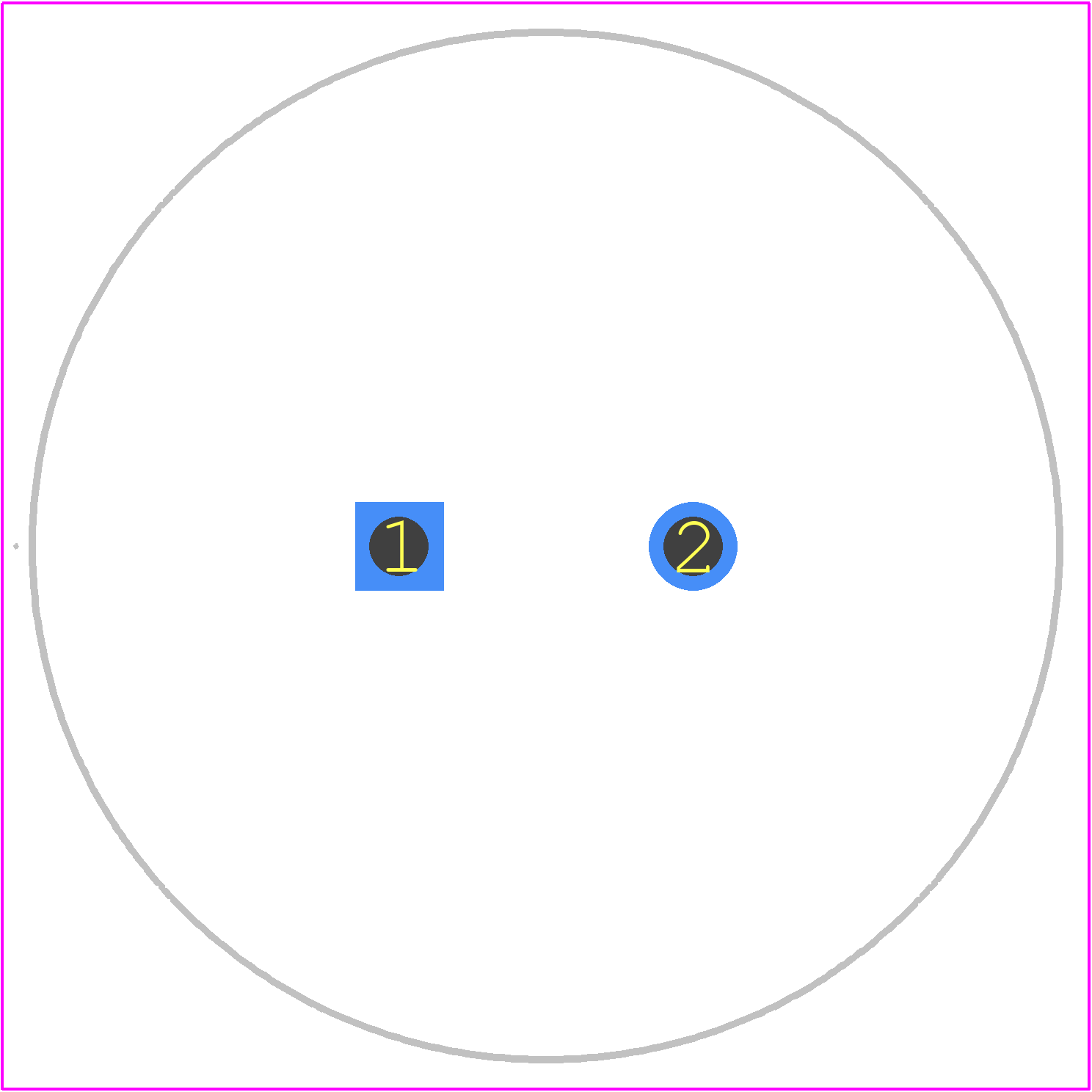

Use the download button to access the LGX2E821MELC30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGX2E,
or try a keyword search, such as Aluminum Electrolytic Capacitors
