LGX2H101MELZ40 - Nichicon

Description: Capacitor: electrolytic; SNAP-IN; 100uF; 500VDC; Ø22x40mm; ±20%

Download LGX2H101MELZ40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGX2H101MELZ40 - Nichicon - PCB symbol
click to zoom
PCB Footprints

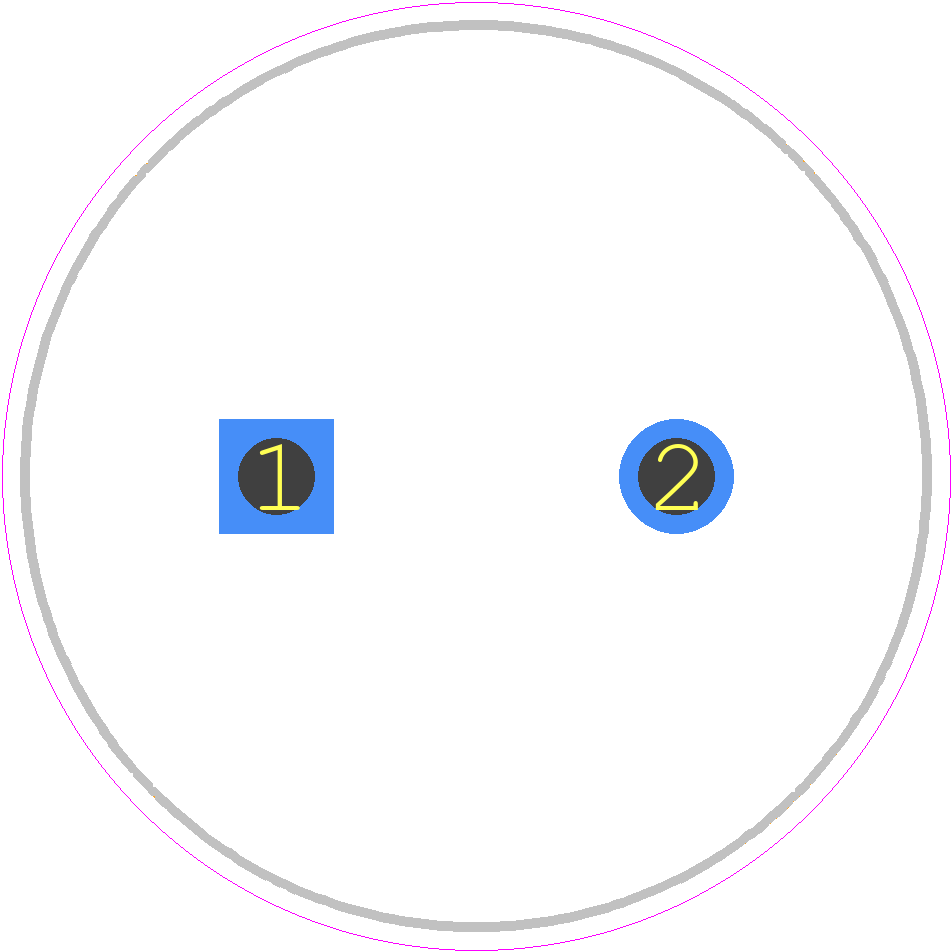

LGX2H101MELZ40 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - SIZE CODE 22X40
click to zoom
3D Models
LGX2H101MELZ40 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - SIZE CODE 22X40
click to zoom

LGX2H101MELZ40 Details

  • Manufacturer Part Number:

    LGX2H101MELZ40

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.67 mA

  • Length:

    40 mm

  • Mounting Feature:

    CHASSIS MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Screw Ends

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Ripple Current:

    770 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    BINDING POST

LGX2H101MELZ40 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
  • Yes, the LGX2H101MELZ40 is designed to withstand high-vibration environments. Nichicon Corporation conducts vibration tests according to IEC 60068-2-6, and the capacitor meets the requirements for vibration resistance.
  • The LGX2H101MELZ40 is rated for operation up to 105°C (221°F). While it can withstand high temperatures, the capacitor's lifespan and performance may degrade over time. It's essential to consider the operating temperature and its impact on the capacitor's reliability.
  • Yes, the LGX2H101MELZ40 is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives. Nichicon Corporation ensures that its products meet the required environmental standards.
  • The recommended storage condition for the LGX2H101MELZ40 is in a dry, cool place with a temperature range of 5°C to 30°C (41°F to 86°F) and humidity below 70%. Avoid storing the capacitors in direct sunlight or near heat sources.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LGX2H101MELZ40 Overview

Use the download button to access the LGX2H101MELZ40 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGX2H, or try a keyword search, such as Aluminum Electrolytic Capacitors
