The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
Yes, the LGY1H222MELZ25 is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm amplitude, and can be used in high-vibration applications.
Yes, the LGY1H222MELZ25 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
The derating curve for the LGY1H222MELZ25 is typically provided by Nichicon Corporation upon request, and it varies depending on the specific application and operating conditions.
Yes, the LGY1H222MELZ25 is designed to operate in humid environments, but it's recommended to follow the storage and handling guidelines to prevent moisture absorption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGY1H222MELZ25 Overview

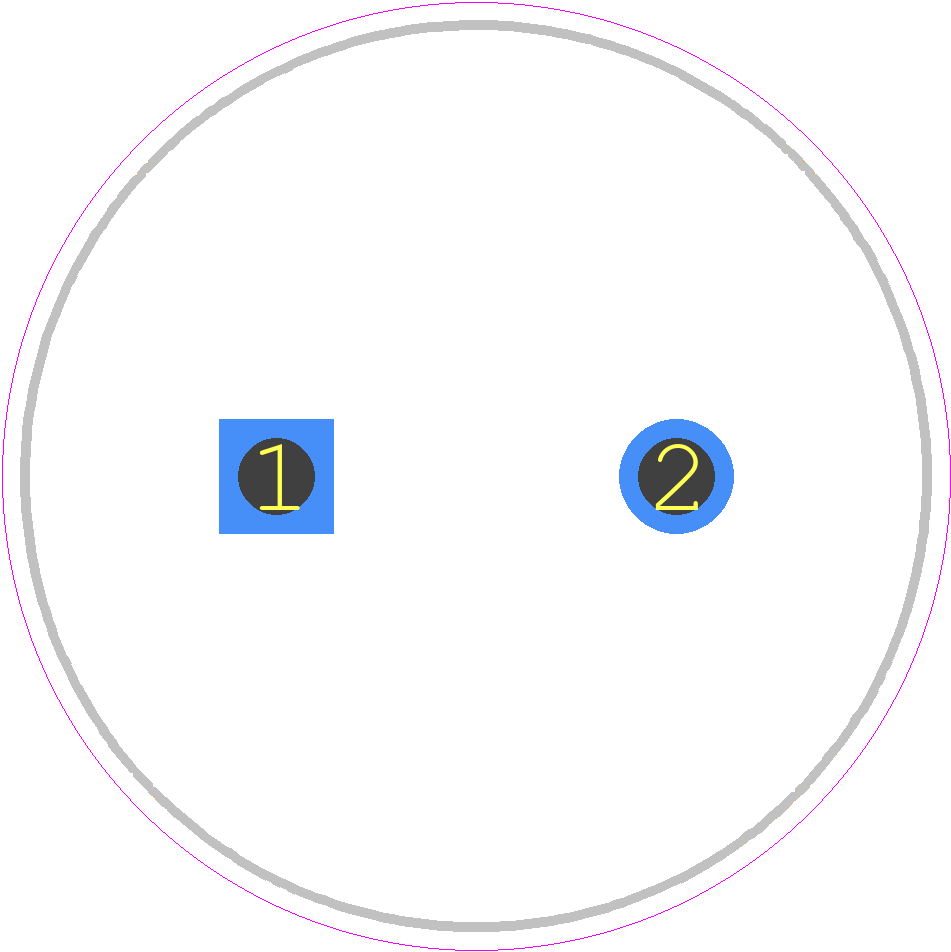

Use the download button to access the LGY1H222MELZ25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGY1H,
or try a keyword search, such as Aluminum Electrolytic Capacitors
