LGY1H682MELA45 - Nichicon

Description: 6800 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C

Download LGY1H682MELA45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGY1H682MELA45 - Nichicon - PCB symbol
click to zoom
PCB Footprints

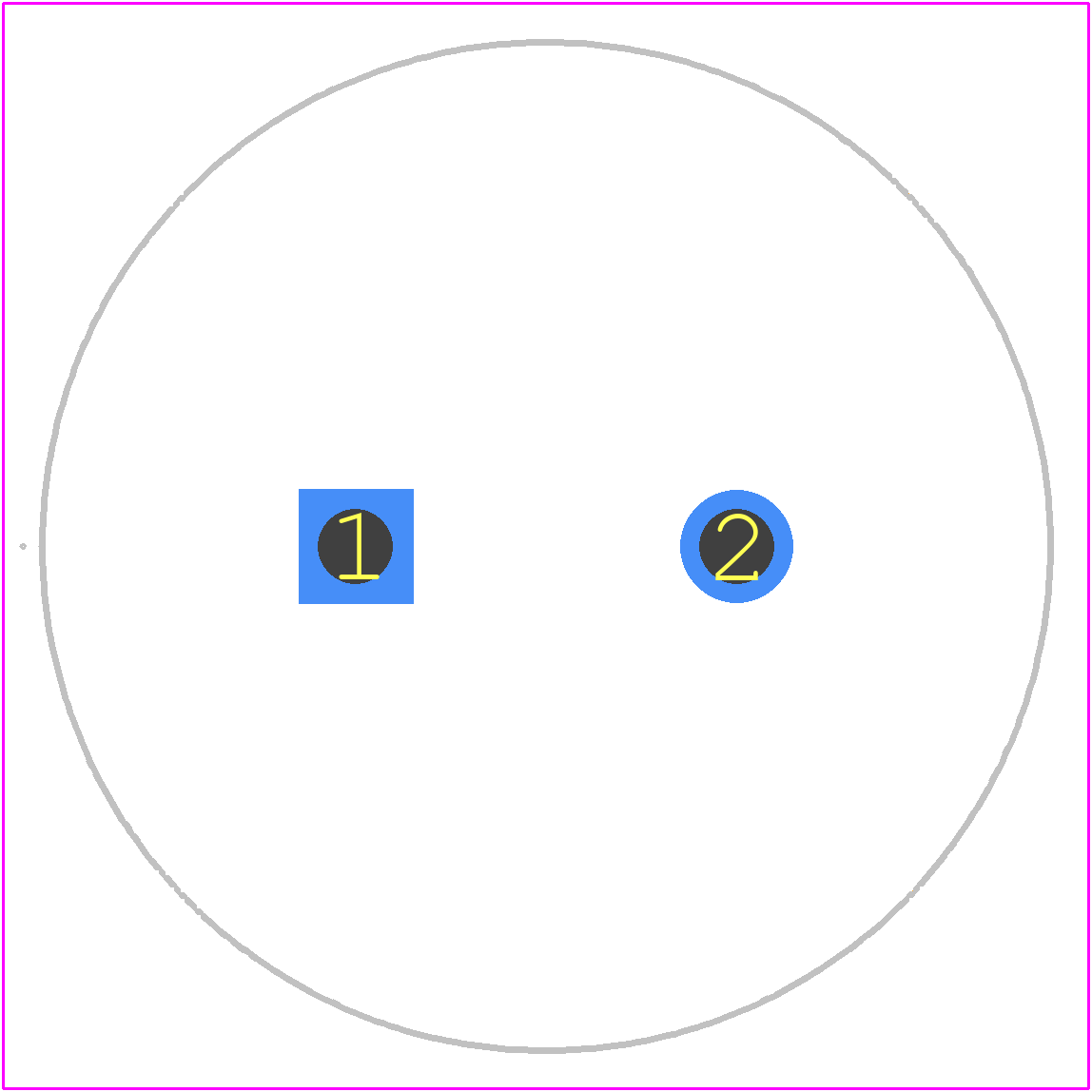

LGY1H682MELA45 - Nichicon PCB footprint - Other - Other - 25x45mm
click to zoom
3D Models
LGY1H682MELA45 - Nichicon - 3D model - Other - 25x45mm
click to zoom

LGY1H682MELA45 Details

  • Manufacturer Part Number:

    LGY1H682MELA45

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    7

  • Capacitance:

    6800 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.74 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    2500 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.30

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGY1H682MELA45 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the LGY1H682MELA45 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The ESR of the LGY1H682MELA45 is typically around 0.02 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • Yes, the LGY1H682MELA45 is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 1.5 mm amplitude, and 3 hours duration.
  • The shelf life of the LGY1H682MELA45 is typically 2 years from the date of manufacture, but it's recommended to follow proper storage conditions to maintain the capacitor's performance and reliability.
