The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LGY1K152MELA25 is designed to withstand vibrations up to 10Hz to 2000Hz, 10mm double amplitude. However, it's recommended to perform additional testing and validation to ensure the capacitor meets the specific requirements of your application.
The LGY1K152MELA25 is designed to reduce high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. However, the actual noise reduction performance may vary depending on the specific application and circuit design.
The LGY1K152MELA25 has a maximum operating temperature of 125°C (257°F). While it can operate at high temperatures, its performance and lifespan may be affected. It's recommended to derate the capacitor's voltage and current ratings according to the temperature derating curve provided in the datasheet.
The LGY1K152MELA25 has a moisture sensitivity level of 3, which means it can withstand normal humidity levels. However, it's recommended to take precautions to prevent moisture ingress, such as using conformal coating or potting, to ensure the capacitor's reliability and lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGY1K152MELA25 Overview

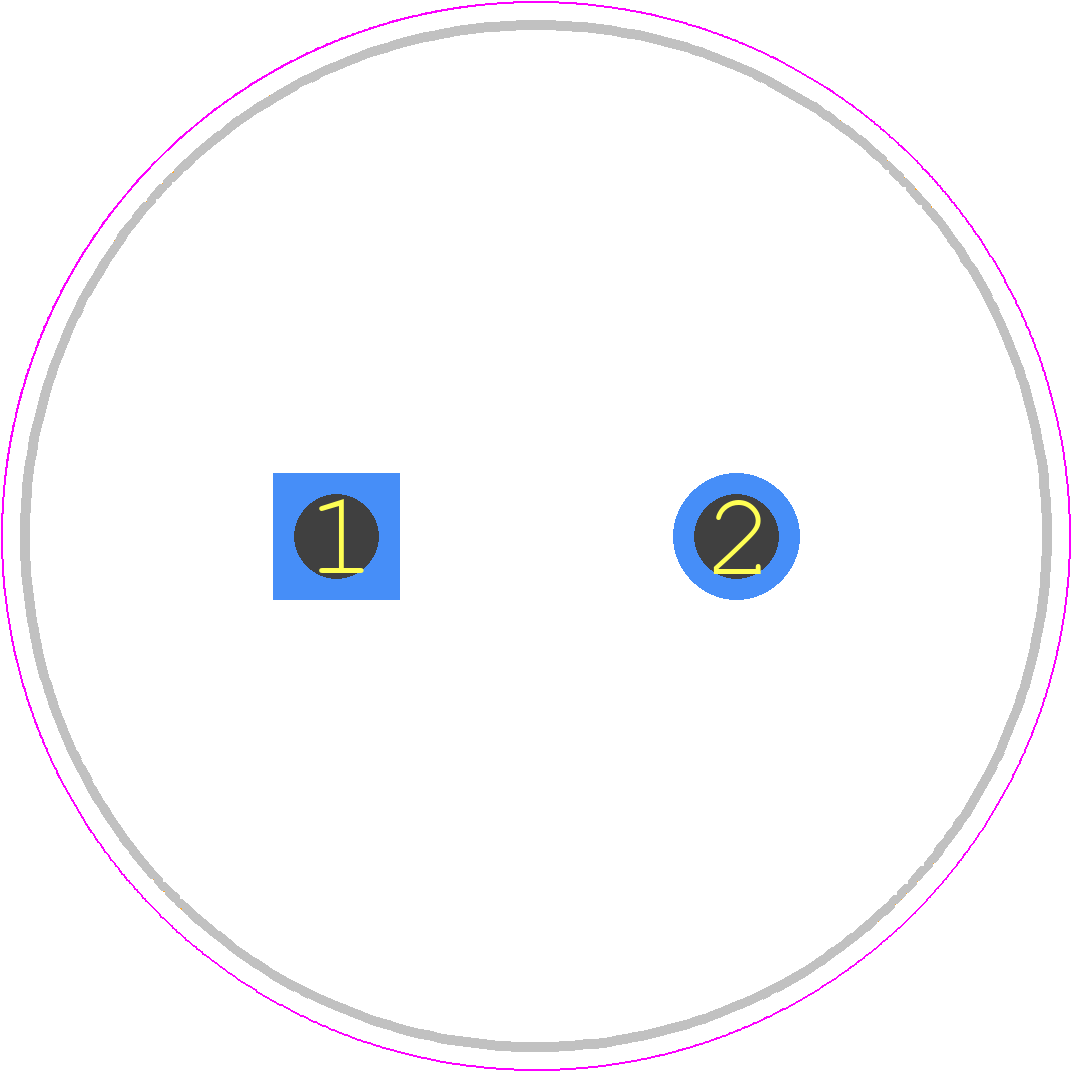

Use the download button to access the LGY1K152MELA25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGY1K,
or try a keyword search, such as Aluminum Electrolytic Capacitors
