LGY2A102MELZ35 - Nichicon

Description: 1000 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C , -40°C ~ 105°C , 100 V , 1000 µF

Download LGY2A102MELZ35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGY2A102MELZ35 - Nichicon - PCB symbol
click to zoom
PCB Footprints

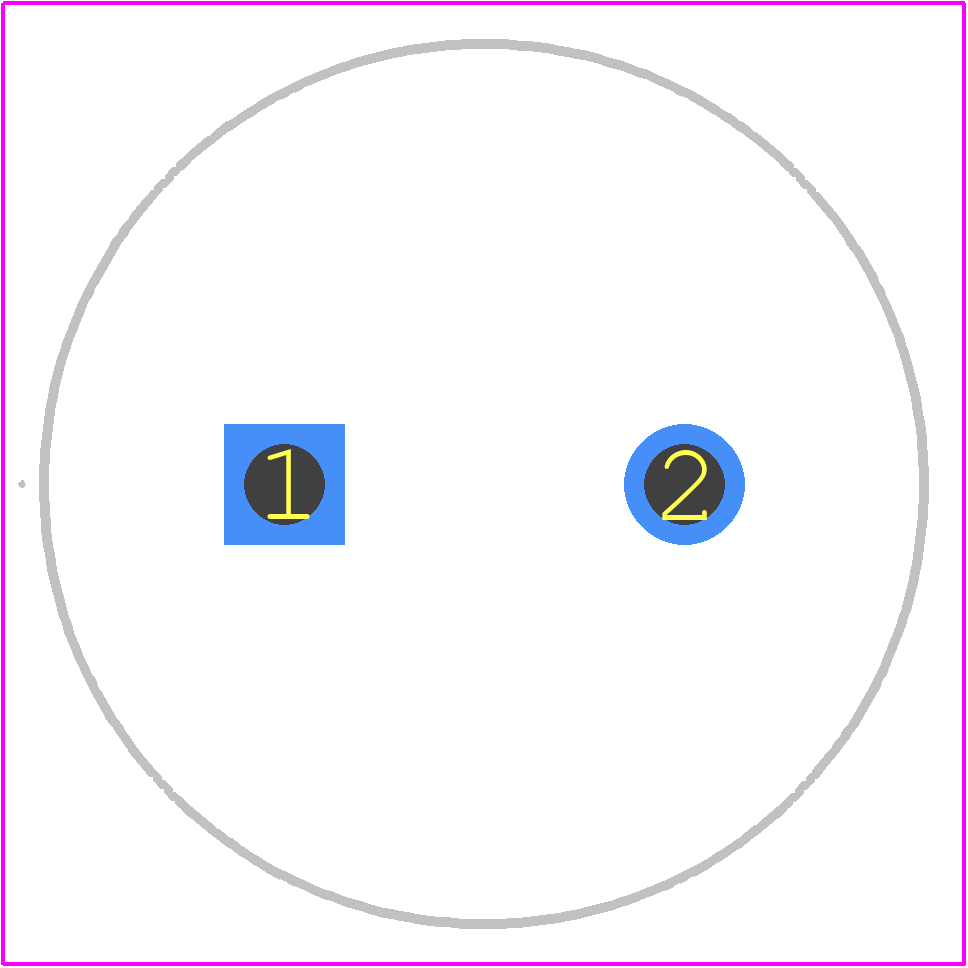

LGY2A102MELZ35 - Nichicon PCB footprint - Other - Other - 22 × 35mm_2025-1.1
click to zoom
3D Models
LGY2A102MELZ35 - Nichicon - 3D model - Other - 22 × 35mm_2025-1.1
click to zoom

LGY2A102MELZ35 Details

  • Manufacturer Part Number:

    LGY2A102MELZ35

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.94 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    1500 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.20

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGY2A102MELZ35 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGY2A102MELZ35 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LGY2A102MELZ35 capacitor is 0.02 ohms or less at 100 kHz, which is relatively low and suitable for high-frequency applications.
  • The LGY2A102MELZ35 capacitor has a maximum operating temperature of 125°C (257°F), making it suitable for high-temperature applications such as automotive and industrial systems.
  • The shelf life of the LGY2A102MELZ35 capacitor is 2 years from the date of manufacture, as long as it is stored in a dry, cool place with minimal humidity.
