- Part Number LGY2A222MELA50
- Manufacturer Nichicon
- Pin Count 2
- Part Category Capacitor Polarised
- Package Category Capacitor, Polarized Radial Diameter
- Footprint Name Capacitor, Polarized Radial Diameter - 25x50+
- Released Date Mar 19, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LGY2A222MELA50 Details
-
Manufacturer Part Number:
LGY2A222MELA50
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
CAN
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8532.22.00
-
Manufacturer:
Nichicon Corporation
-
YTEOL:
6
LGY2A222MELA50 Frequently Asked Questions (FAQs)
-
The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds to 5 seconds. However, it's always best to follow the soldering profile recommended by the manufacturer or the specific assembly process.
-
Yes, the LGY2A222MELA50 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE) above the maximum allowed levels.
-
The ESR of the LGY2A222MELA50 capacitor is not explicitly stated in the datasheet, but it can be estimated to be around 10-20 mohms based on the capacitor's construction and materials. However, it's recommended to consult with the manufacturer or a reliable source for the exact ESR value.
-
The LGY2A222MELA50 capacitor is designed for general-purpose use and may not be suitable for high-vibration or high-shock applications. If you need a capacitor for such applications, you should consider a capacitor specifically designed for high-reliability or ruggedized environments.
-
The shelf life of the LGY2A222MELA50 capacitor is typically 2 years from the date of manufacture, but it can be extended up to 5 years or more if stored properly in a cool, dry place, away from direct sunlight and moisture.
Trust Checks
Community Provided
System Verified
Community Approved
LGY2A222MELA50 Overview

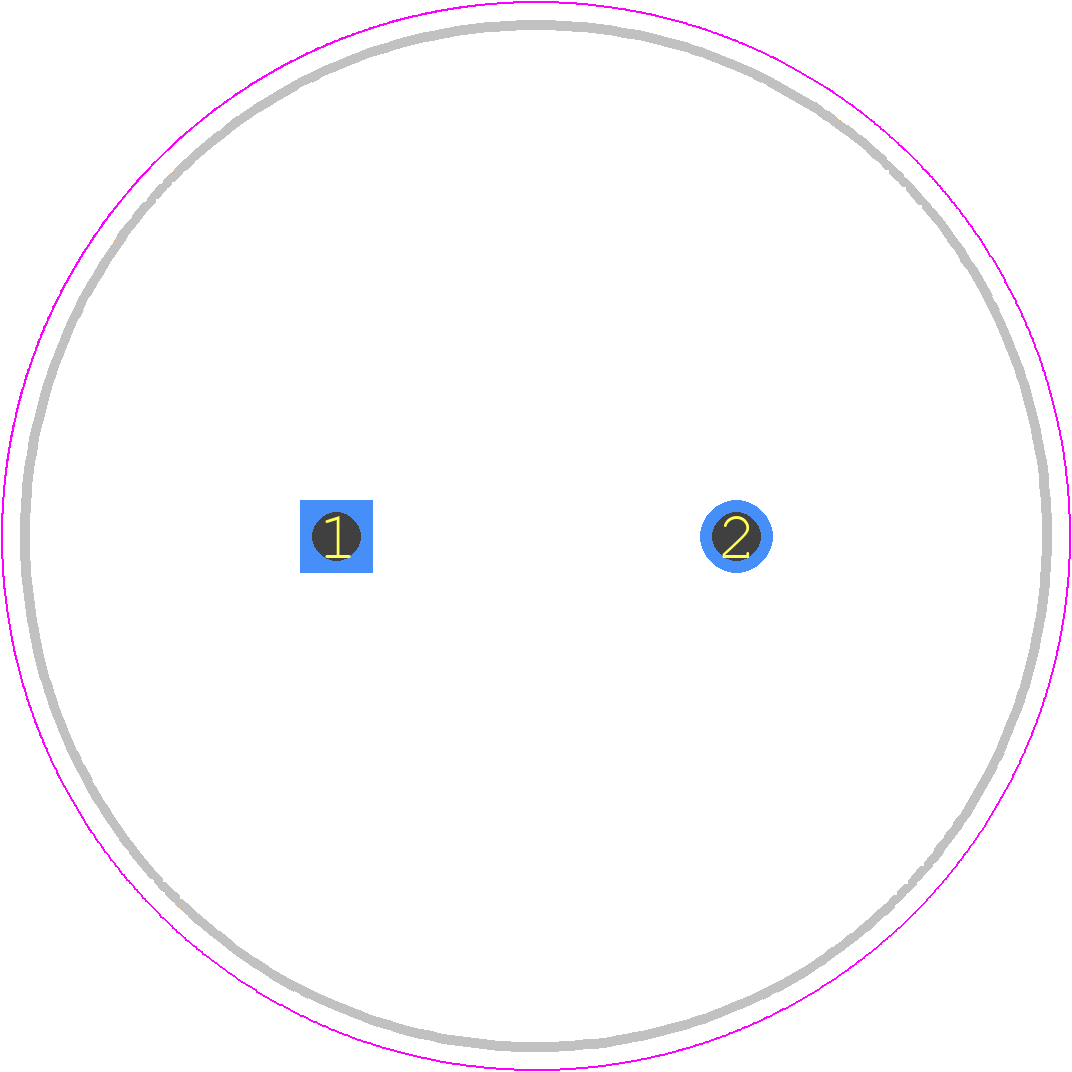

Use the download button to access the LGY2A222MELA50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGY2A,
or try a keyword search, such as Aluminum Electrolytic Capacitors
