LICAL-ENC-MS001 footprint, schematic symbol and 3D model by TE Connectivity

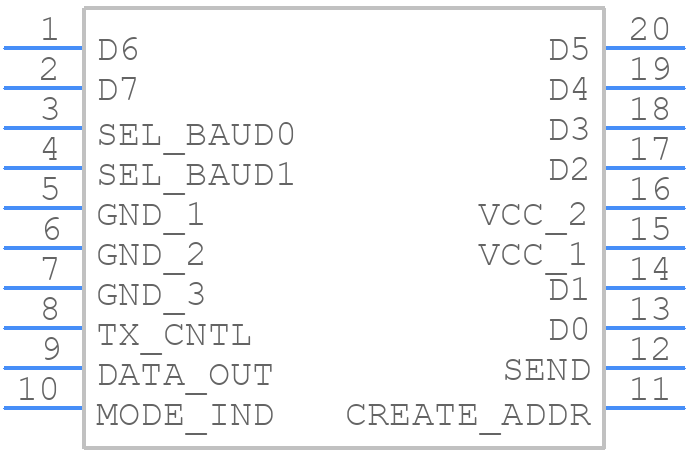

Symbol

click to zoom

PCB Footprints

LICAL-ENC-MS001 - TE Connectivity PCB footprint - Other - Other - 20-pin SSOP

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LICAL-ENC-MS001
Part Number LICAL-ENC-MS001
Manufacturer TE Connectivity
Pin Count 20
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 20-pin SSOP
Released Date Oct 14, 2024
Last Modified Date Oct 14, 2024 4:24 AM UTC
Pinout / Pin List Click Here (Member Only)

LICAL-ENC-MS001 Details

Manufacturer Part Number:
LICAL-ENC-MS001
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
HTS Code:
8542.39.00.60
Manufacturer:
TE Connectivity
Consumer IC Type:
CONSUMER CIRCUIT
JESD-30 Code:
R-PDSO-G20
Number of Terminals:
20
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP20,.3
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Qualification Status:
Not Qualified
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL

LICAL-ENC-MS001 Frequently Asked Questions (FAQs)

The recommended torque for the M3 screw is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity's application note.
Yes, the LICAL-ENC-MS001 is designed to withstand vibrations up to 10g (10-2000 Hz) and shocks up to 50g (11ms), making it suitable for high-vibration environments.
The encoder outputs a quadrature signal, which can be connected to a microcontroller's quadrature decoder or a dedicated encoder interface IC. Consult the microcontroller's datasheet and the encoder's application note for specific connection details.
The LICAL-ENC-MS001 is compatible with 5V logic, but it can also be used with 3.3V logic with an external voltage regulator or level shifter.
The maximum cable length for the encoder's output signals is 10 meters (33 feet), but it's recommended to keep the cable length as short as possible to minimize signal degradation and noise.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

LICAL-ENC-MS001 Overview

Use the download button to access the LICAL-ENC-MS001 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LICAL, or try a keyword search, such as Other Consumer ICs
