LLG2E182MELC45 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 250volts 1800uF 85c 35x45x10L/S

Download LLG2E182MELC45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLG2E182MELC45 - Nichicon - PCB symbol
click to zoom
PCB Footprints

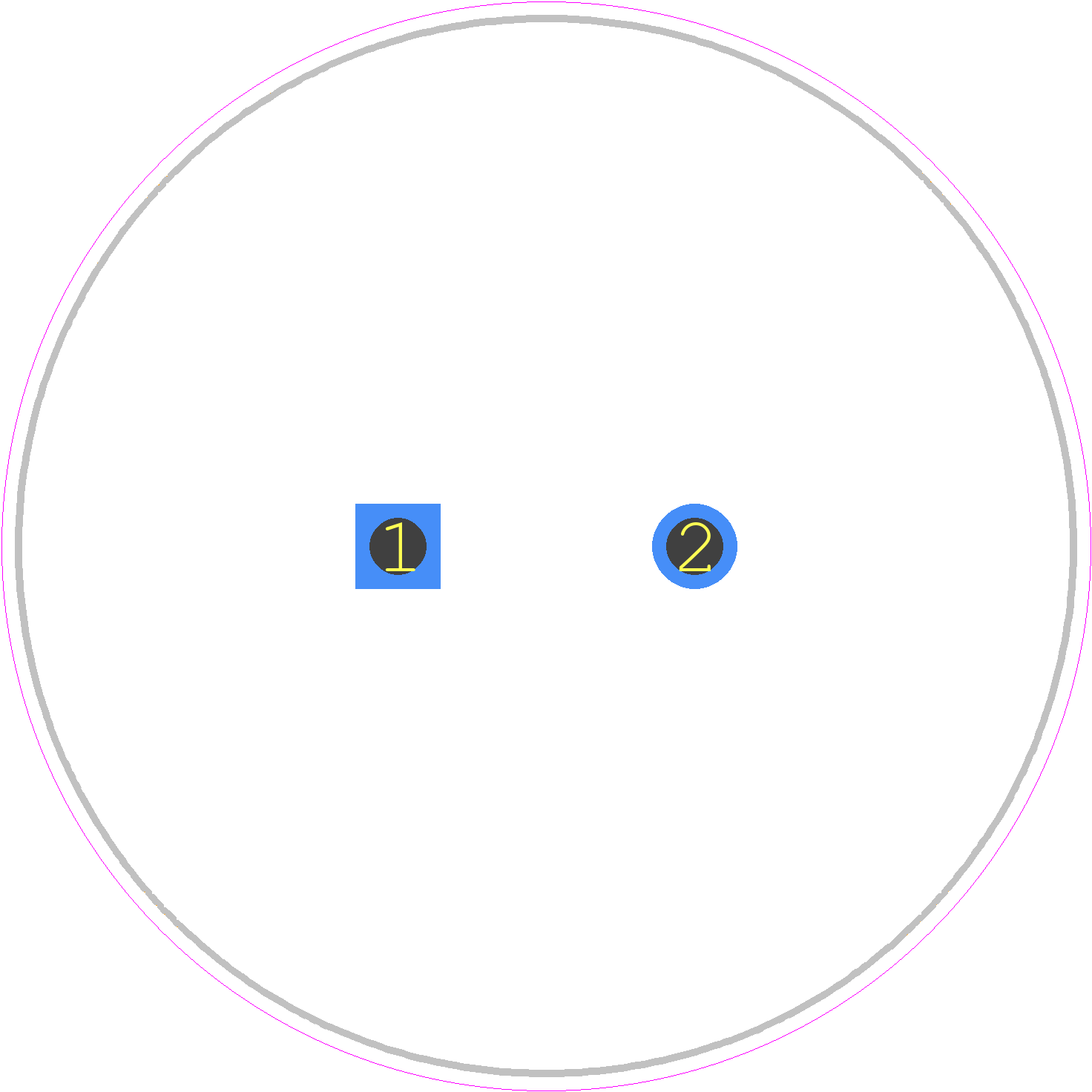

LLG2E182MELC45 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35*45
click to zoom
3D Models
LLG2E182MELC45 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 35*45
click to zoom

LLG2E182MELC45 Details

  • Manufacturer Part Number:

    LLG2E182MELC45

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    1800 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.01 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    4550 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLG2E182MELC45 Frequently Asked Questions (FAQs)

  • Nichicon recommends a voltage derating of 80% or less for the LLG2E182MELC45 to ensure reliable operation and prevent overheating.
  • The ESR of the LLG2E182MELC45 decreases with increasing frequency. According to Nichicon's application notes, the ESR at 100 kHz is approximately 1/3 of the ESR at 100 Hz.
  • While the LLG2E182MELC45 has a maximum operating temperature of 125°C, Nichicon recommends using it up to 105°C for reliable operation. Above 105°C, the capacitor's lifespan and performance may degrade.
  • Nichicon recommends using a reflow soldering method for mounting the LLG2E182MELC45. The company also provides guidelines for manual soldering and wave soldering in their application notes.
  • The capacitance of the LLG2E182MELC45 decreases with increasing temperature. According to Nichicon's datasheet, the capacitance at 125°C is approximately 80% of the capacitance at 20°C.
