LLS2A222MELA - Nichicon

Description: Nichicon 2200μF 100 V Aluminium Electrolytic Capacitor, LS Series 3000h 25 (Dia.) x 40mm

Download LLS2A222MELA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLS2A222MELA - Nichicon - PCB symbol
click to zoom
PCB Footprints

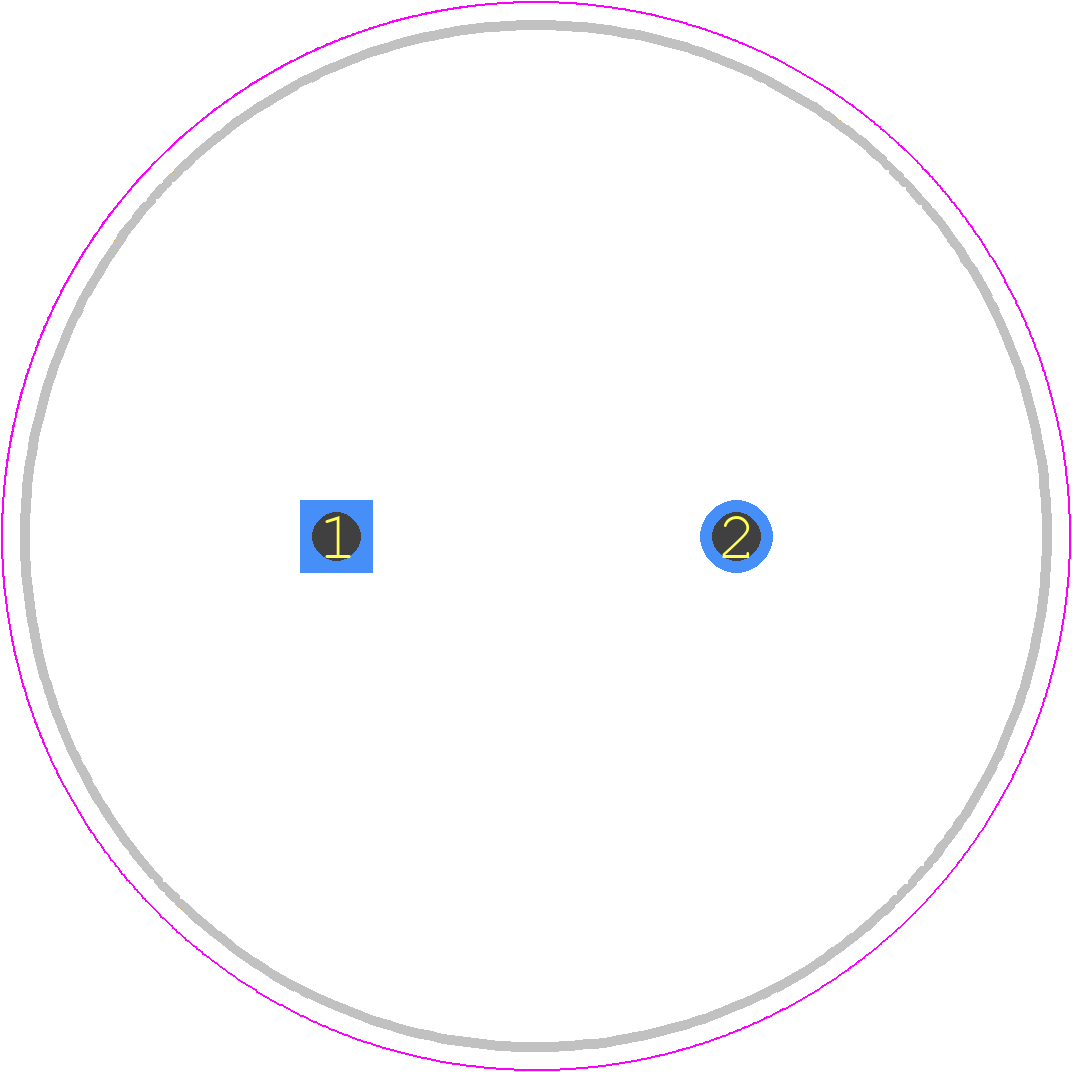

LLS2A222MELA - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25mmx40mm
click to zoom
3D Models
LLS2A222MELA - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25mmx40mm
click to zoom

LLS2A222MELA Details

  • Manufacturer Part Number:

    LLS2A222MELA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    2200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.4 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    3210 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.20

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLS2A222MELA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LLS2A222MELA capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LLS2A222MELA capacitor is not explicitly stated in the datasheet, but it is typically around 0.1 ohms for aluminum electrolytic capacitors of this type.
  • While the LLS2A222MELA capacitor is designed to be reliable, it is not specifically designed for high-vibration applications. If high vibration is expected, a more ruggedized capacitor or additional mechanical support may be necessary.
  • The shelf life of the LLS2A222MELA capacitor is typically 2 years from the date of manufacture, but it can be extended to 5 years or more if stored properly in a cool, dry place.
