Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
To ensure stability, it's essential to follow the recommended component values and PCB layout. Additionally, make sure to decouple the input and output pins with capacitors, and use a low-ESR output capacitor. Also, avoid using long traces and minimize the distance between the input and output pins.
The maximum input voltage rating for the LM10000SDE/NOPB is 12V, but it's recommended to operate the device within the specified input voltage range (4.5V to 10V) for optimal performance and reliability.
While it's possible to use a different inductor value or type, it's not recommended as it may affect the device's performance and stability. The recommended inductor value and type are specified in the datasheet to ensure optimal performance and efficiency.
The output voltage ripple and noise can be calculated using the equations provided in the datasheet. Additionally, Texas Instruments provides a calculator tool to help estimate the output voltage ripple and noise based on the input voltage, output voltage, and other parameters.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM10000SDE/NOPB Overview

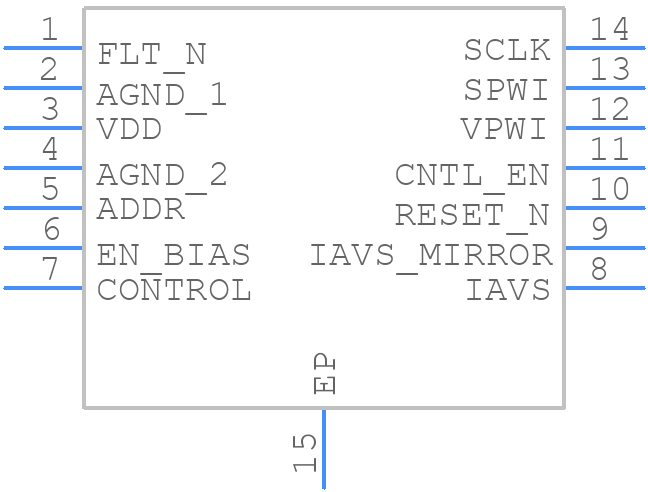

Use the download button to access the LM10000SDE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM100,
or try a keyword search, such as Power Management Circuits
