LM1036M/NOPB - Texas Instruments

Description: Tone/volume/balance circuit,LM1036M

Download LM1036M/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

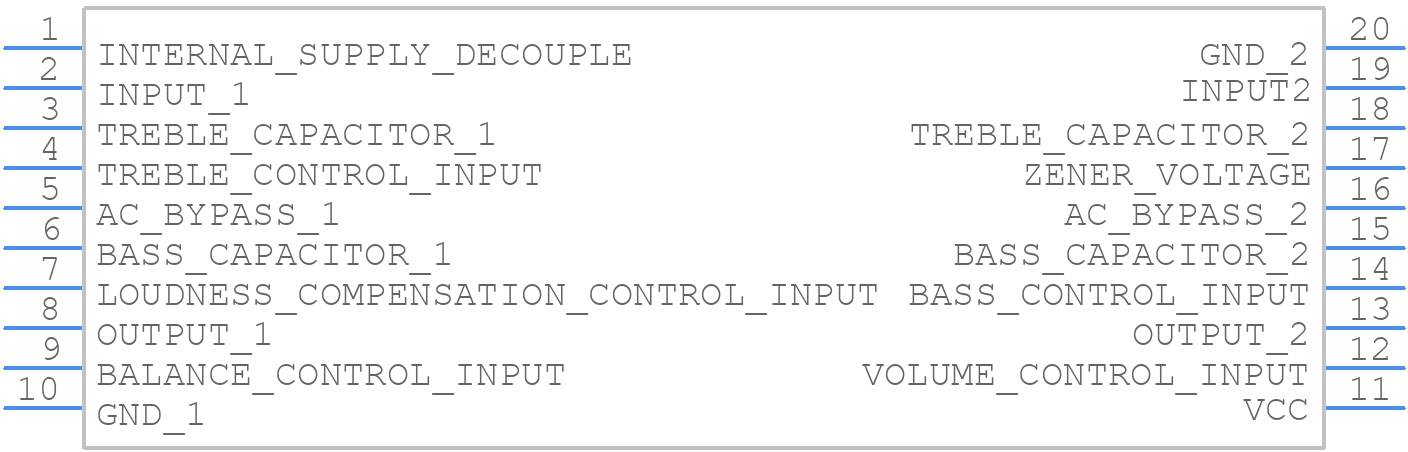

Symbol
LM1036M/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM1036M/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0020A-1
click to zoom
3D Models
LM1036M/NOPB - Texas Instruments - 3D model - Small Outline Packages - DW0020A-1
click to zoom

LM1036M/NOPB Details

  • Manufacturer Part Number:

    LM1036M/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, SOP-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Channel Separation:

    75 dB

  • Consumer IC Type:

    TONE CONTROL CIRCUIT

  • Harmonic Distortion:

    0.06%

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bands:

    2

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.642 mm

  • Supply Current-Max:

    45 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

LM1036M/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM1036M/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • Choose capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. For the input capacitor, a 1-10uF ceramic or film capacitor is recommended, while for the output capacitor, a 10-22uF ceramic or tantalum capacitor is suitable.
  • The LM1036M/NOPB can operate in an ambient temperature range of -40°C to 85°C, but the device's performance and reliability may degrade at extreme temperatures.
  • Yes, the LM1036M/NOPB can be used in switching power supply applications, but it's essential to ensure that the device is properly bypassed and filtered to prevent noise and oscillations.
  • To troubleshoot oscillations or instability issues, check the PCB layout, ensure proper decoupling and bypassing, and verify that the input and output capacitors meet the recommended specifications. Also, check for any noise or interference from other components or systems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM1036M/NOPB Overview

Use the download button to access the LM1036M/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM103, or try a keyword search, such as Audio Control ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
