LM10506TME/NOPB - Texas Instruments

Description: Triple Buck + LDO Power Management IC (PMIC)

Download LM10506TME/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

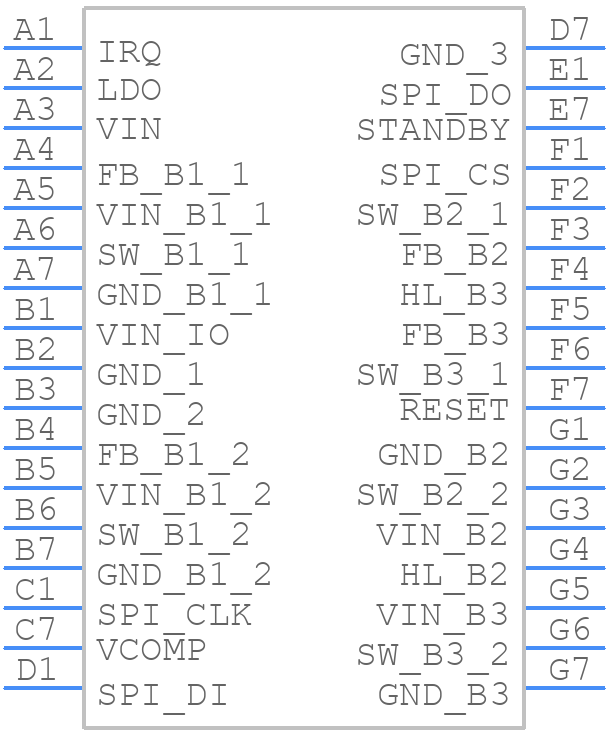

LM10506TME/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM10506TME/NOPB - Texas Instruments PCB footprint - BGA - BGA - YFR0034x
click to zoom
3D Models
LM10506TME/NOPB - Texas Instruments - 3D model - BGA - YFR0034x
click to zoom

LM10506TME/NOPB Details

  • Manufacturer Part Number:

    LM10506TME/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    S-PBGA-B34

  • JESD-609 Code:

    e1

  • Length:

    2.81 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    34

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.3 A

  • Output Voltage-Max:

    3.6 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA34,7X7,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.675 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2300 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.81 mm

LM10506TME/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM10506TME/NOPB should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet.
  • To ensure stability, it's essential to follow the recommended capacitor selection and placement guidelines in the datasheet. Additionally, the output capacitor's ESR (Equivalent Series Resistance) should be within the recommended range to prevent oscillations.
  • The LM10506TME/NOPB can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range (4.5V to 15V) for optimal performance and reliability.
  • The LM10506TME/NOPB is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and thermal design to prevent overheating.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout, component values, and soldering quality. Use an oscilloscope to analyze the output voltage waveform and identify any oscillations or noise. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
