Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general thermal design guidelines, such as placing the device near a thermal pad, using thermal vias, and keeping the surrounding area clear of other components.
The LM10506TME-A/NOPB requires a specific bias voltage and current to operate optimally. Ensure that the input voltage is within the recommended range (2.7V to 5.5V) and that the output voltage is properly set using the feedback resistors. Also, make sure to follow the recommended startup and shutdown procedures to avoid damage to the device.
Operating the LM10506TME-A/NOPB outside of the recommended temperature range (-40°C to 125°C) can affect its performance, reliability, and lifespan. The device may experience reduced efficiency, increased power consumption, and potentially even damage or failure. It's essential to ensure that the device is operated within the recommended temperature range to guarantee optimal performance and reliability.
To troubleshoot issues with the LM10506TME-A/NOPB, start by checking the PCB layout, component values, and soldering quality. Ensure that the input and output capacitors are properly selected and placed. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
The LM10506TME-A/NOPB is a switching regulator, which can generate electromagnetic interference (EMI). To minimize EMI, follow proper PCB layout and design guidelines, such as using a solid ground plane, placing the device near a thermal pad, and using shielding or filtering components. Ensure that the device is properly decoupled and that the output voltage is filtered to reduce noise and ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM10506TME-A/NOPB Overview

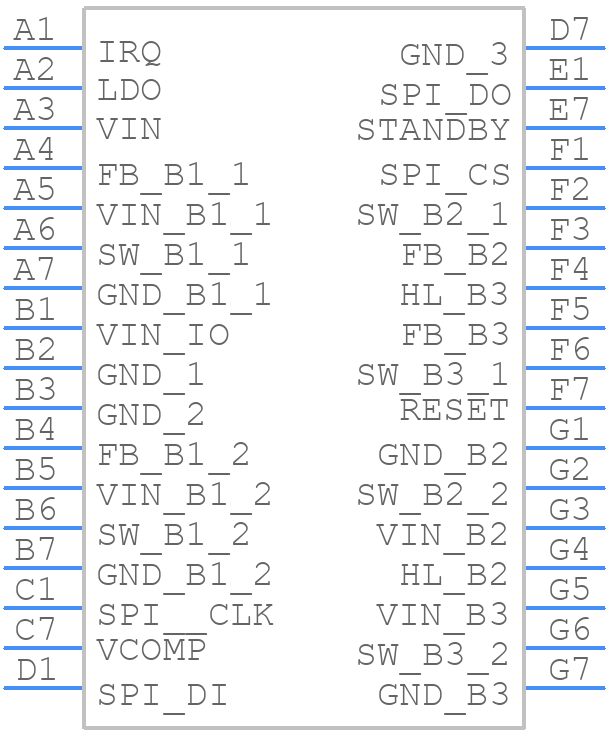

Use the download button to access the LM10506TME-A/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM105,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
