Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
The LM10524TMX/NOPB requires a specific bias voltage and current to operate optimally. Ensure that the input voltage is within the recommended range (2.7V to 5.5V) and that the output voltage is set correctly using the feedback resistors. Also, make sure to follow the recommended startup and shutdown procedures to avoid damage to the device.
The LM10524TMX/NOPB has a maximum output current capability of 2A, but this can be limited by the thermal performance of the device and the PCB. Ensure that the device is properly cooled and that the output current is within the recommended range to avoid overheating and damage.
The LM10524TMX/NOPB has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, it's still recommended to add external protection circuitry, such as a voltage supervisor or a reset IC, to ensure that the device is properly protected against voltage faults.
The recommended input capacitor value is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) and a voltage rating that matches the input voltage. A ceramic or tantalum capacitor is recommended, as they have low ESR and are suitable for high-frequency switching applications.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LM10524TMX/NOPB Overview

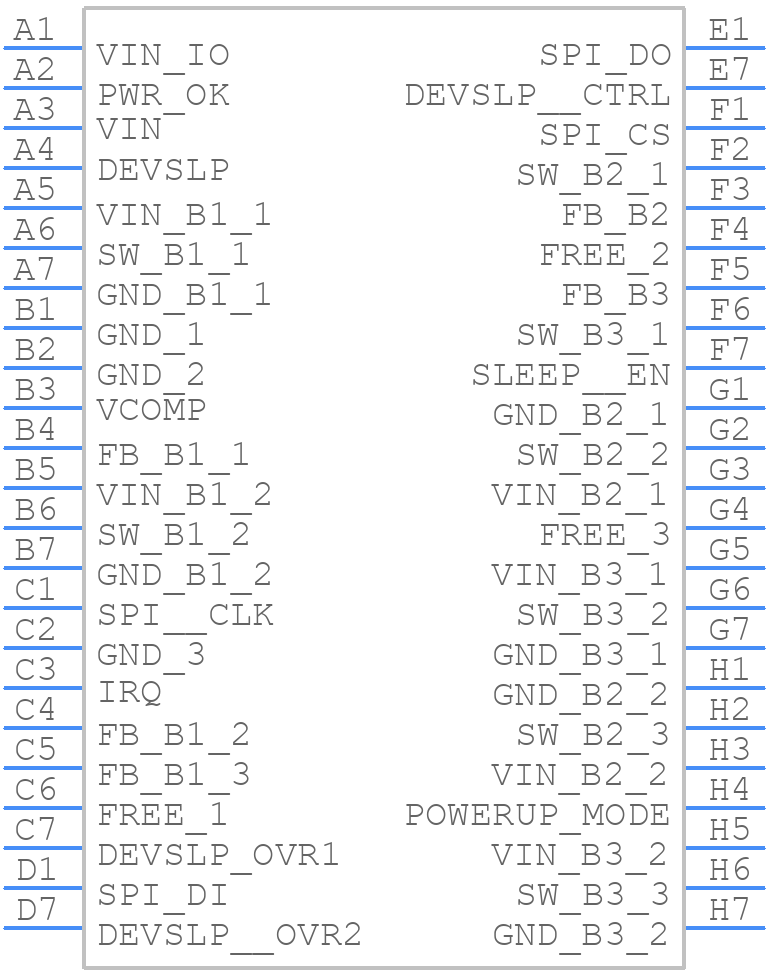

Use the download button to access the LM10524TMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM105,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
