Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors.
To ensure reliable operation over the full temperature range, it's essential to follow proper thermal design and layout guidelines, such as providing adequate heat sinking, using thermal vias, and ensuring good airflow. Additionally, consider using thermal simulation tools to analyze the device's thermal performance.
Using a lower input voltage than recommended may result in reduced performance, such as lower output current capability or increased noise sensitivity. Using a higher input voltage than recommended may result in reduced reliability, increased power consumption, or even device damage. It's essential to follow the recommended input voltage range specified in the datasheet.
To troubleshoot issues with the device, start by verifying the PCB layout and component values against the recommended design. Check for proper decoupling, filtering, and grounding. Use oscilloscopes and other diagnostic tools to identify the source of the issue. Consult the datasheet and application notes for guidance on troubleshooting common issues.
The LM12458CIV is a high-frequency device, and as such, it's essential to consider EMI and RFI in the design. Follow proper shielding and grounding techniques, use EMI filters and absorbers as needed, and ensure that the device is placed in a location that minimizes radiation and susceptibility to external interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM12458CIV Overview

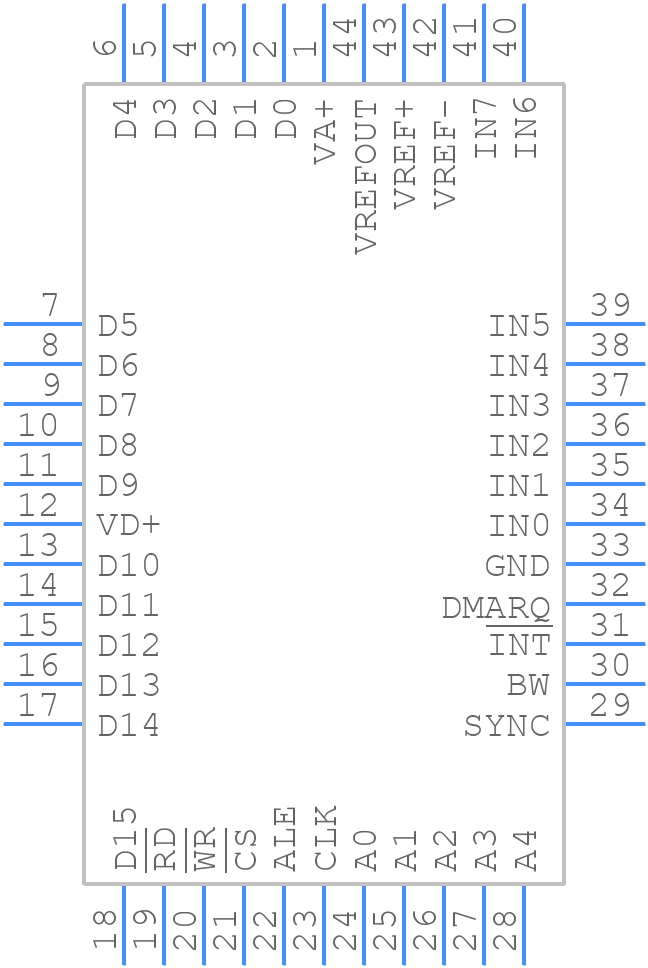

Use the download button to access the LM12458CIV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM124,
or try a keyword search, such as Analog to Digital Converters
