LM1246AAC/NA - Texas Instruments

Description: LM1246AAC/NA, RGB Preamplifier 24-Pin MDIP

Download LM1246AAC/NA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

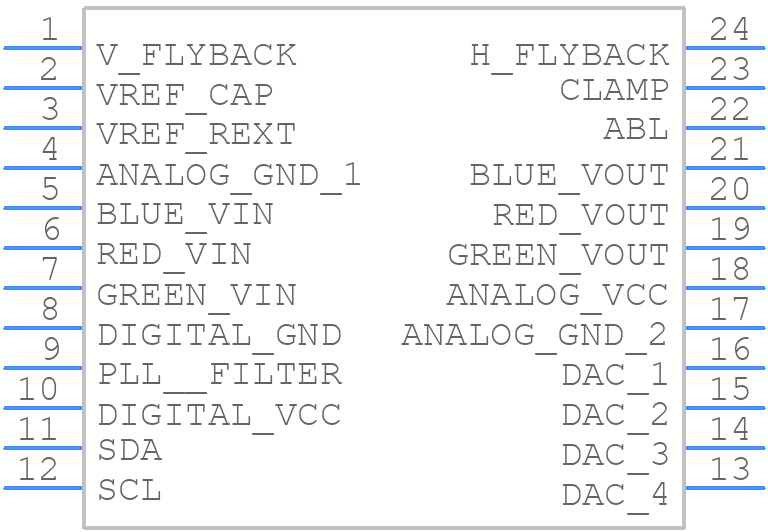

LM1246AAC/NA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

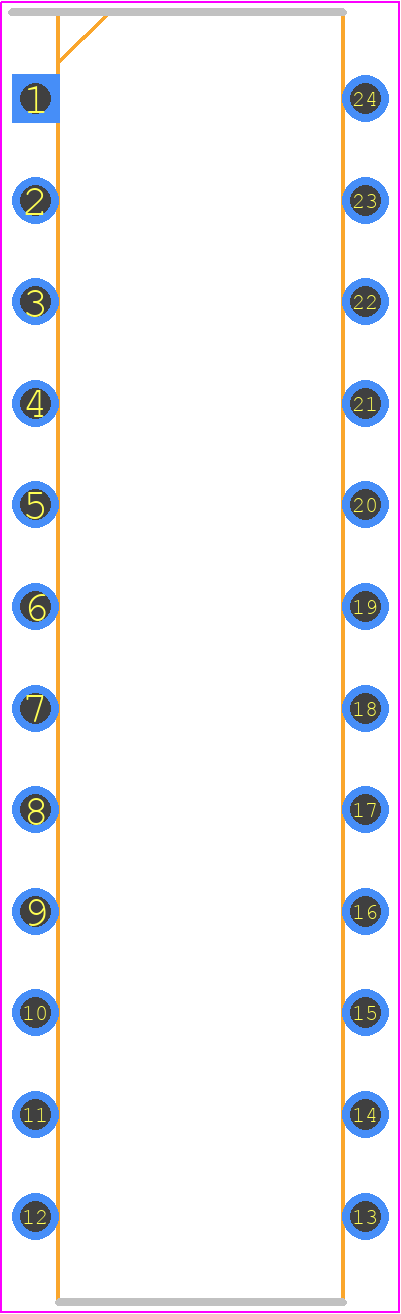

LM1246AAC/NA - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - NAM0024D
click to zoom
3D Models
LM1246AAC/NA - Texas Instruments - 3D model - Dual-In-Line Packages - NAM0024D
click to zoom

LM1246AAC/NA Details

  • Manufacturer Part Number:

    LM1246AAC/NA

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP, DIP24,.3

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e0

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    250 mA

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40
